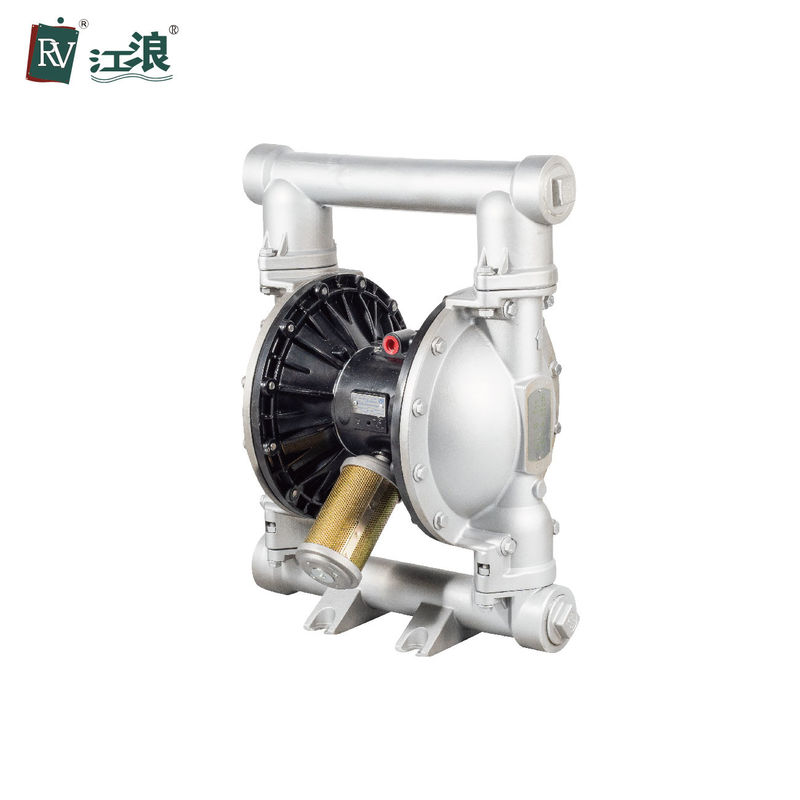

RV80 Diaphragm Pump (Stainless Steel)

RV80 Diaphragm Pump (Stainless Steel)
RV80 Diaphragm Pump (Stainless Steel)

Large Image :  RV80 Diaphragm Pump (Stainless Steel)

Product Details:
Contact Now

RV80 Diaphragm Pump (Stainless Steel)

Description
Max Working Pressure: 120psi(0.84Mpa ,8.4bar) Max Flow Rate: 275 Gpm(1041 Lpm)
Max Reciprocating Speed: 135cpm Max.Suction Height (Dry Sucking): 5m
Max.permitted Grain: 9.4mm Max Air Consumption: 180scfm(90L/s)
Air Inlet Size: 3/4 In.npt(f) Air Outlet Size: 1 In.npt(f)
Fluid Inlet Size: 3 In.npt(f) Fluid Outlet Size: 3 In.npt(f)
Weight: Aluminum Pump 77kg; Stainless Steel 110.0kg; Ductile Iton 180kg
Highlight:

stainless steel diaphragm pump

,

RV80 diaphragm pump with warranty

,

industrial stainless steel diaphragm pump

Product Details

High-Performance Industrial Pump

Engineered for demanding industrial applications, this robust pump ensures reliable fluid transfer for a wide range of viscous materials. Its heavy-duty construction and large flow paths provide exceptional performance and longevity, minimizing downtime and maximizing operational efficiency.

  • Internally Threaded ANSI Center-Porting
  • Bolted Leak-Free Flanged Connections
  • Large Flow Paths for High Viscosities
  • Easy Air Valve Maintenance
  • Heavy-Duty Construction

Typical Applications: Chemical transfers, Filter press-feed, Dewatering.

Key Attributes

Fluid Flow
Up to 275 GPM (1040 LPM)
Porting Size
3 in (76.2 mm) ANSI Center-Porting
Thread Type
Internal 3" NPT or BSPT
Connection Type
Bolted Flanged Connections

Technical Specifications

Parameter Value
Max Working Pressure 120 psi (0.84 Mpa, 8.4 bar)
Max Flow Rate 275 gpm (1041 lpm)
Max Reciprocating Speed 135 cpm
Max Suction Height (Dry Sucking) 5 m
Max Permitted Grain 9.4 mm
Max Air Consumption 180 scfm (90 L/s)
Air Inlet Size 3/4 in. NPT (f)
Air Outlet Size 1 in. NPT (f)
Fluid Inlet Size 3 in. NPT (f)
Fluid Outlet Size 3 in. NPT (f)
Weight Aluminum pump: 77kg; Stainless steel: 110.0kg; Ductile Iron: 180kg

Tag:

diaphragm pump 3 inch,

stainless steel diaphragm pump air operated 270 gpm,

3 inch stainless steel diaphragm pump air
