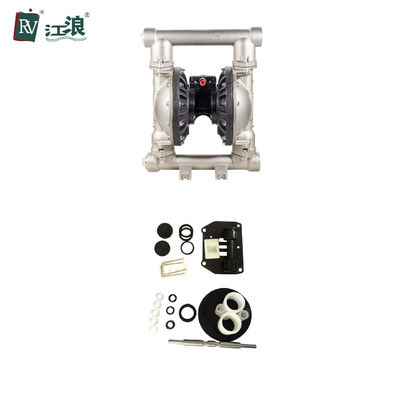

RV50 Diaphragm Pump (Stainless Steel)

RV50 Diaphragm Pump (Stainless Steel)
RV50 Diaphragm Pump (Stainless Steel) RV50 Diaphragm Pump (Stainless Steel)

Large Image :  RV50 Diaphragm Pump (Stainless Steel)

Product Details:
Contact Now

RV50 Diaphragm Pump (Stainless Steel)

Description
Max Working Pressure: 120psi(0.84Mpa ,8.4bar) Max Flow Rate: 150 Gpm(570 Lpm)
Max Reciprocating Speed: 145cpm Max Suction Height (Dry Suction): 5m
Max Permitted Grain: 6mm Max. Air Consumption: 140scfm(70L/s)
Air Inlet Size: 1/2 In.npt(f) Air Outlet Size: 1/2 In.npt(f)
Fluid Inlet Size: 2 In.npt(f) Fluid Outlet Size: 2 In.npt(f)
Weight: Aluminum Pump 29kg ; Stainless Steel 47kg; Ductile Iton 66kg
Highlight:

stainless steel diaphragm pump

,

RV50 diaphragm pump

,

diaphragm pump with warranty

Product Details

High-Flow Diaphragm Pump

Engineered for superior performance and reliability, this diaphragm pump offers exceptional flow rates and robust fluid handling capabilities, making it ideal for demanding industrial applications.

  • 2 in (50.8 mm) End-Porting
  • Larger Ports for Increased Flow
  • Up to 120 psi Fluid Pressure
  • Lube-Free Operation
Ideal for: Chemical processing, water treatment, general industrial fluid transfer, and more.

Key Attributes

Contact Email sales@rivervalve.com
Phone 008615001858171
WhatsApp 8615821368145

Technical Specifications

Parameter Value
Max Working Pressure 120psi (0.84 MPa, 8.4 bar)
Max Flow Rate 150 gpm (570 lpm)
Max Reciprocating Speed 145 cpm
Max Suction Height (Dry Suction) 5 m
Max Permitted Grain 6 mm
Max. Air Consumption 140 scfm (70 L/s)
Air Inlet Size 1/2 in. npt (f)
Air Outlet Size 1/2 in. npt (f)
Fluid Inlet Size 2 in. npt (f)
Fluid Outlet Size 2 in. npt (f)
Weight Aluminum pump: 29kg; Stainless steel: 47kg; Ductile Iron: 66kg
