RV25 Stainless Steel Pneumatic Reciprocating Drainage Pump with 40 gpm Flow Rate and 120 psi Max Pressure

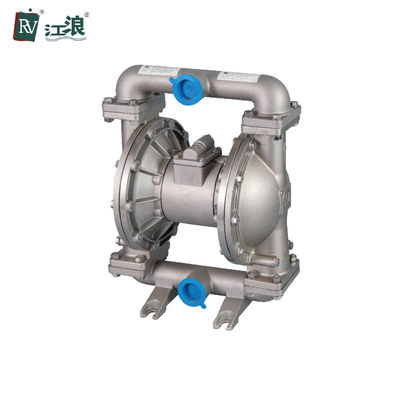

Large Image : RV25 Stainless Steel Pneumatic Reciprocating Drainage Pump with 40 gpm Flow Rate and 120 psi Max Pressure

Product Details:

Contact Now

RV25 Stainless Steel Pneumatic Reciprocating Drainage Pump with 40 gpm Flow Rate and 120 psi Max Pressure

Description

Max Working Pressure:	120psi(0.84Mpa ,8.4bar)	Max Flow Rate:	40 Gpm(150 Lpm)
Max Reciprocating Speed:	276cpm	Max Suction Height(Dry Sucking):	5.48m
Max Permitted Grain:	4mm	Max.Air Consumption:	45scfm(22.5L/s)
Air Inlet Size:	1/2 In.npt(f)	Air Outlet Size:	1/2 In.npt(f)
Fluid Inlet Size:	1 In.npt	Fluid Outlet Size:	1 In.npt(f)
Weight:	Aluminum Pump 8.2kg Stainless Steel 15kg
Highlight:	RV25 pneumatic drainage pump , stainless steel diaphragm pump , reciprocating pump with warranty

RV25 Pneumatic Reciprocating Drainage Pump (Stainless Steel)

PKP 100-100 SS316L/PTFE - Industrial Pump

High-Performance, Corrosion-Resistant Fluid Transfer Solution

The PKP 100-100 SS316L/PTFE is a robust and versatile diaphragm pump designed for demanding industrial applications. Featuring a durable SS316L stainless steel construction with PTFE components, it offers exceptional resistance to corrosive chemicals and challenging environments. Its compact yet high-flow design makes it ideal for a wide range of fluid transfer tasks.

Key Benefits

Superior chemical resistance with SS316L and PTFE wetted parts
High flow rate (40 gpm) in a portable and efficient package
Reliable and effective air valve system for consistent operation
Epoxy-coated center section for enhanced durability in corrosive settings
Optional external controller for convenient remote operation

Target Industries & Applications

Chemical Processing
Dewatering & Sump Evacuation
Tank & Sump Drainage
Drum Fluid Transfer
Unloading Fluids
Chemical Evacuation
Ceramic Glaze Supply

Product Attributes

Brand: PKP

Origin: Not Specified

Material: SS316L Stainless Steel / PTFE

Color: Silver / White

FOB Unit: Piece

MOQ: N/A

Technical Specifications

Parameter	Specification	Units	Details
Model	PKP 100-100 SS316L/PTFE	-	Ex d II 2G IIC T6 Gb
Max Working Pressure	120	psi (0.84 MPa, 8.4 bar)	-
Max Flow Rate	40	gpm (150 lpm)	-
Max Reciprocating Speed	276	cpm	-
Max Suction Height (Dry Sucking)	5.48	m	-
Max Permitted Grain	4	mm	-
Max. Air Consumption	45	scfm (22.5 L/s)	-
Air Inlet Size	1/2	in.npt(f)	-
Air Outlet Size	1/2	in.npt(f)	-
Fluid Inlet Size	1	in.npt	-
Fluid Outlet Size	1	in.npt(f)	-
Weight	15	kg	Stainless Steel Pump
Weight	8.2	kg	Aluminum Pump (Reference)
