RV50 Full Stainless Steel Diaphragm Pump with 150 gpm Flow Rate and 100psi Max Pressure

RV50 Full Stainless Steel Diaphragm Pump with 150 gpm Flow Rate and 100psi Max Pressure
RV50 Full Stainless Steel Diaphragm Pump with 150 gpm Flow Rate and 100psi Max Pressure

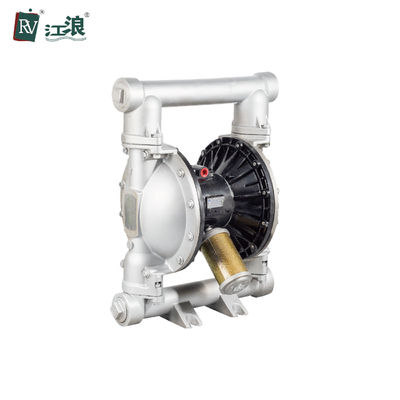

Large Image :  RV50 Full Stainless Steel Diaphragm Pump with 150 gpm Flow Rate and 100psi Max Pressure

Product Details:
Contact Now

RV50 Full Stainless Steel Diaphragm Pump with 150 gpm Flow Rate and 100psi Max Pressure

Description
Max Working Pressure: 100psi(0.7Mpa ,7bar) Max Flow Rate: 150 Gpm(570 Lpm)
Max Reciprocating Speed: 145cpm Max Suction Height (Dry Sucking): 5m
Ax Permitted Grain: 6mm Max Air Consumption: 175scfm(4.9m³/min)
Air Inlet Size: 1/2 In.npt(f) Air Outlet Size: 1/2 In.npt(f)
Fluid Inlet Size: 2in.npt(f) Fluid Outlet Size: 2in.npt(f)
Weight: Aluminum Pump 29.0kg Stainless Steel Pump 47.0kg
Highlight:

stainless steel diaphragm pump

,

RV50 diaphragm pump

,

full stainless steel pump

RV50 Diaphragm Pump (Full Stainless Steel)
High-Flow Industrial Diaphragm Pump

Engineered for demanding industrial applications, this diaphragm pump delivers exceptional flow rates and robust performance. Its advanced design ensures reliability and efficiency in transferring a wide range of fluids, from viscous pastes to liquid concentrates.

  • High Flow Capacity: Up to 150 gpm (568 lpm) for rapid fluid transfer
  • Versatile Fluid Handling: Suitable for fluids from slow-moving to highly flowable
  • Durable Construction: Features epoxy-coated air sections and lube-free operation for extended lifespan
  • Reliable Air Valve: Patented, high-reliability closed center air valve is online serviceable
  • Remote Operation: External controller option available for flexible integration
Ideal Applications

Food processing, chemical transfer, batching, and general industrial fluid handling.

Tag:

diaphragm pump 3 inch,

stainless steel diaphragm pump air operated 270 gpm,

3 inch stainless steel diaphragm pump air
