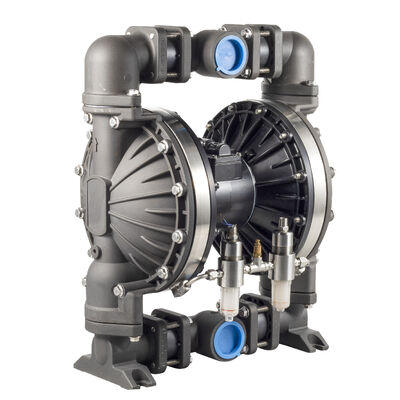

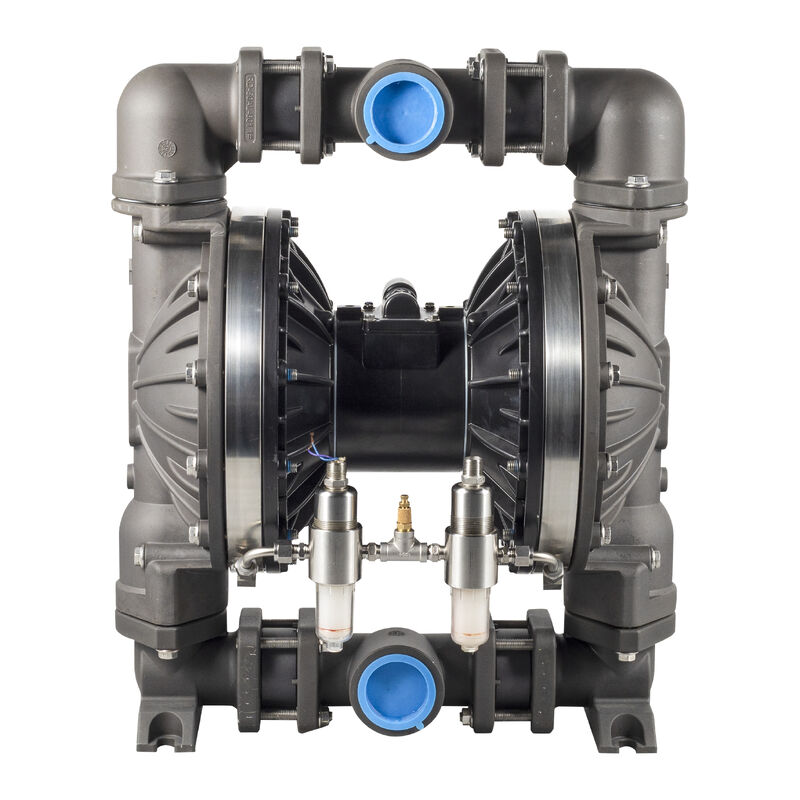

Diaphragm Membrane Vacuum Pump
Laboratory Chemical Vacuum Diaphragm Membrane Vacuum Pump with 1-year warranty
Product Specifications
| Max Working Pressure |
120 psi (0.84Mpa, 8.4bar) |
| Max Flow Rate |
150gpm (570L/M) |
| Max Reciprocating Speed |
145cpm |
| Max Suction Height (Dry Sucking) |
5m |
| Max Permitted Grain |
0.24inch (6mm) |
| Max Air Consumption |
140scfm (70L/S) |
| Air Inlet Size |
1/2inch |
| Air Outlet Size |
3/4 inch |
| Fluid Inlet Size |
2 inch |
| Fluid Outlet Size |
2 inch |
| Weight |
Aluminum pump: 27.2KGS | Stainless steel pump: 48KGS |
Manufacturing Advantages
High-Tech Enterprise
Certified High-Tech Enterprise with continuous innovation
Quality Certifications
CE, ATex, ISO9001, SGS certified manufacturing
Patent Protection
40+ patents including 10 invention patents
Industry Standards
Participated in setting national technical standards
Packaging & Delivery
Company Profile
Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. Shanghai Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years.
Core Products
Specializing in diaphragm pumps and control valves including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, and Sequencing Valve.
Material Options
Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N, etc.
Available inlet/outlet sizes: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection types: Threaded connection (plastic pumps 1/4" to 1-1/2", all metal pumps) and Flanged connection (plastic pumps 1/2" to 3")
Customer Service
- All enquiries replied within 24 working hours
- Professional pump producer with dedicated design team
- Standard export wooden case packaging (non-fumigation)
- Fast and responsive after-sales service
Frequently Asked Questions
Minimum Order Quantity
1 piece for regular products. Samples available with cost deductible from future orders.
Payment Methods
D/P, T/T, Western Union - confirmed with exact order details.
Delivery Time
1-7 working days depending on quantity requirements.
Packaging Options
Cartons with foam inside, wooden cases, and pallets available.
Shipping Methods
International express or sea freight options.
Warranty Coverage
15 years warranty for air motor, 5 years for pump body.
Custom Specifications
Products can be manufactured according to custom requirements and standards.
