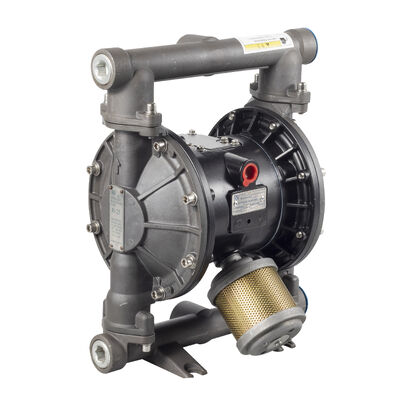

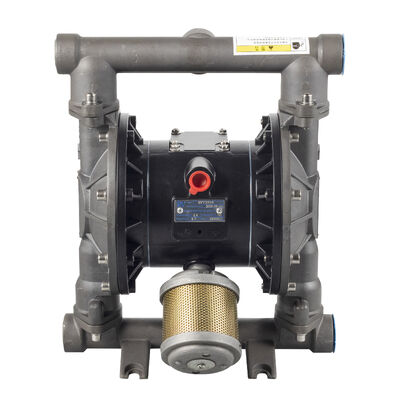

1" Aluminum Air-Powered Diaphragm Pump for Wastewater Treatment
Product Specifications
| Max Working Pressure |
120 psi (0.84Mpa, 8.4bar) |
| Max Flow Rate |
40gpm (150lpm) |
| Max Reciprocating Speed |
276cpm |
| Max Suction Height (Dry Sucking) |
5m |
| Max Permitted Grain |
0.16in. (4mm) |
| Max Air Consumption |
45scfm (22.5L/S) |
| Air Inlet Size |
1/2 in |
| Air Outlet Size |
3/4 in |
| Fluid Inlet Size |
1 in |
| Fluid Outlet Size |
1 in |
| Weight |
Aluminum pump: 8.2 KGS |
Company Profile

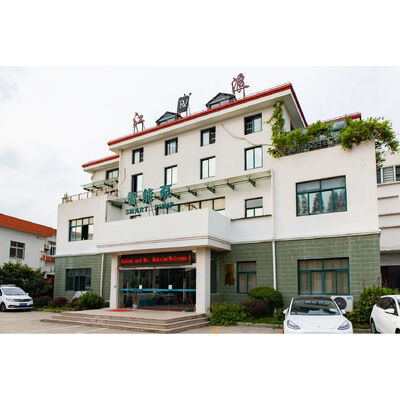

Shanghai Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. The company has been awarded as High-Tech Enterprise and Credit Company title in consecutive years.
Technical Capabilities
- Strong design, innovation, and precision production capabilities
- Cooperation with Shanghai universities for R&D
- Over 40 patents granted, including 10 invention patents
- Participated in setting national standards for pneumatic diaphragm pumps (SH/T 3191-2017)
- Certifications: TS.A National Manufacturing License, CE, ATex, ISO9001, SGS
Product Range
Main products include: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, and Sequencing Valve.
Material Options
Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N, etc.
Available inlet/outlet sizes: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection types: Threaded connection (plastic pumps 1/4" to 1-1/2", all metal pumps) and Flanged connection (plastic pumps 1/2" to 3")
Industry Applications
Services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry, and food and pharmaceutical industry.
Our Service
- All enquiries replied within 24 working hours
- Professional pump producer with dedicated design team
- Standard export wooden case packaging (non-fumigation)
- Fast after-sales service and technical support
Frequently Asked Questions
What is MOQ?
1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
What's the payment method?
D/P, T/T, Western Union - please confirm with us with exact order.
What is the delivery time?
Depends on quantity. Generally 1-7 working days.
What about packaging?
Cartons with foam inside, wooden case, and pallet.
How are the products delivered to us?
By International express or Sea.
How long is the warranty?
15 years warranty for air motor, 5 years for pump body.
Can products be made to different standards?
Yes, we can produce products according to custom needs.
