New Design Pneumatic Diaphragm Pump for Petroleum Applications
Technical Specifications
| Max Working Pressure | 120 psi (0.84Mpa, 8.4bar) |
| Max Flow Rate | 90 gpm (340 L/M) |
| Max Reciprocating Speed | 200 cpm |
| Max Suction Height (Dry Sucking) | 5 m |
| Max Permitted Grain | 0.2 in (5 mm) |
| Max Air Consumption | 80 scfm (40 L/S) |
| Air Inlet Size | 1/2 in |
| Air Outlet Size | 3/4 in |
| Fluid Inlet Size | 1 1/2 in |
| Fluid Outlet Size | 1 1/2 in |
| Weight | Aluminum Pump: 16 kg, Stainless Steel Pump: 30.7 kg, Ductile Iron Pump: 31.6 kg |

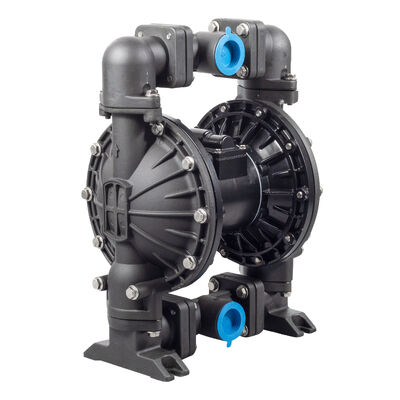

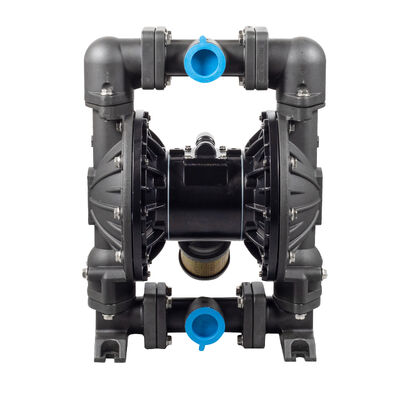

Product Images

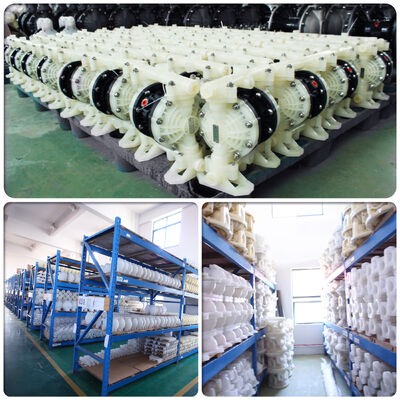

Our Manufacturing Advantages
Packaging & Delivery
Company Profile
Shanghai Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. We have been awarded as High-Tech Enterprise and Credit Company title in consecutive years.
Product Range & Capabilities
- Strong design, innovation, and precision production capabilities
- Main products: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, and various control valves
- Over 40 patents granted, including 10 invention patents
- Participated in setting national standards for pneumatic diaphragm pumps in petrochemical industry (SH/T 3191-2017)
- Certifications: TS.A National Manufacturing License, CE, ATex, ISO9001, SGS
Material Options
Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.
Diaphragm material: Teflon, Santoprene, Viton, Hytrel, Buna-N, etc.
Available inlet/outlet sizes: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"
Connection types: Threaded connection (plastic pumps 1/4" to 1-1/2", all metal pumps) and Flanged connection (plastic pumps 1/2" to 3")
Industry Applications
Services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry, and food and pharmaceutical industry.
Customer Service
- All enquiries replied within 24 working hours
- Professional pump producer with dedicated design team
- Standard export wooden case packaging (non-fumigation)
- Fast after-sales service and technical support
Frequently Asked Questions
What is the minimum order quantity?
1 piece for regular products. Samples are available and sample cost can be deducted from future orders.
What payment methods are accepted?
D/P, T/T, Western Union - please confirm exact payment terms with your order.
What is the delivery time?
Depends on quantity, typically 1-7 working days.
How are products packaged?
Cartons with foam inside, wooden cases, and pallets for secure shipping.
How are products delivered?
By international express or sea freight.
What is the warranty period?
15 years warranty for air motor, 5 years for pump body.
Can products be made to different standards?
Yes, we can produce products according to custom requirements and specifications.
