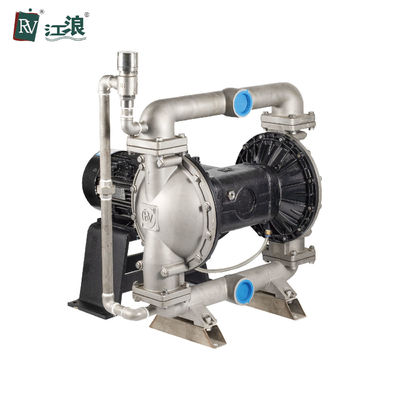

1.5KW 380V 7Bar Electric Diaphragm Pump for Chemical and Acid-Base Fluids Transfer

1.5KW 380V 7Bar Electric Diaphragm Pump for Chemical and Acid-Base Fluids Transfer
1.5KW 380V 7Bar Electric Diaphragm Pump for Chemical and Acid-Base Fluids Transfer 1.5KW 380V 7Bar Electric Diaphragm Pump for Chemical and Acid-Base Fluids Transfer 1.5KW 380V 7Bar Electric Diaphragm Pump for Chemical and Acid-Base Fluids Transfer 1.5KW 380V 7Bar Electric Diaphragm Pump for Chemical and Acid-Base Fluids Transfer

Large Image :  1.5KW 380V 7Bar Electric Diaphragm Pump for Chemical and Acid-Base Fluids Transfer

Product Details:
Place of Origin: Shanghai, China
Brand Name: RV
Model Number: RVP-75A11-F
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $2,800
Contact Now

1.5KW 380V 7Bar Electric Diaphragm Pump for Chemical and Acid-Base Fluids Transfer

Description
Pressure: 0.6 MPA Discharge Pipe Size: 1 In
Motor Frequency: 50Hz Outlet Size: 2
Sealing Material: PTFE Voltage: 380V
Material: Stainless Steel Power: 1.5KW
Pump Type: Diaphragm Pump Flow Rate: 10m3/H
Max Pressure: 7Bar Motor Enclosure: Totally Enclosed Fan Cooled
Chemical Compatibility: Oils, Water Fluid Pressure: 120 Psi (8.4 Bar, 0.84 Mpa)
Port Size: 1 Inch ANSI
Highlight:

1.5KW Electric Diaphragm Pump

,

380V Diaphragm Pump

,

7Bar Chemical Pump

2 Inch Electric Diaphragm Pump Manufacturers Chemical Strong Acid Alkali
Product Specifications
Type RVP-75A11-F
Brand RV
Material PVDF
Color White
Function Fluid Handling, Pump Industrial Applications
Feature
  • 1 inch ANSI end-porting
  • High flow in a compact, portable size
  • Fluid pressure to 120 psi (8.4 bar, 0.84 Mpa)
Usage
  • Drum fluid transfer
  • Chemical evacuation
  • Acid-base fluids transfer

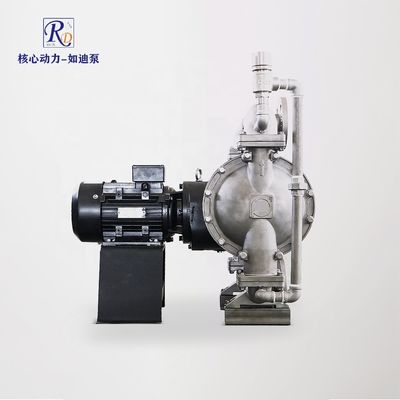

Product Images
1.5KW 380V 7Bar Electric Diaphragm Pump for Chemical and Acid-Base Fluids Transfer 0 1.5KW 380V 7Bar Electric Diaphragm Pump for Chemical and Acid-Base Fluids Transfer 1
Production Process
1.5KW 380V 7Bar Electric Diaphragm Pump for Chemical and Acid-Base Fluids Transfer 2 1.5KW 380V 7Bar Electric Diaphragm Pump for Chemical and Acid-Base Fluids Transfer 3 1.5KW 380V 7Bar Electric Diaphragm Pump for Chemical and Acid-Base Fluids Transfer 4 1.5KW 380V 7Bar Electric Diaphragm Pump for Chemical and Acid-Base Fluids Transfer 5 1.5KW 380V 7Bar Electric Diaphragm Pump for Chemical and Acid-Base Fluids Transfer 6 1.5KW 380V 7Bar Electric Diaphragm Pump for Chemical and Acid-Base Fluids Transfer 7 1.5KW 380V 7Bar Electric Diaphragm Pump for Chemical and Acid-Base Fluids Transfer 8 1.5KW 380V 7Bar Electric Diaphragm Pump for Chemical and Acid-Base Fluids Transfer 9
Frequently Asked Questions
Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
Q: What's the payment?
A: D/P, T/T, Western Union, please confirm with us with exact order.
Q: What is the delivery time?
A: Depend on the quantity.
Q: What about package?
A: Cartons with foam inside & wooden case.
Q: How are the products delivered to us?
A: By International express or by sea.
Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to customer need.
