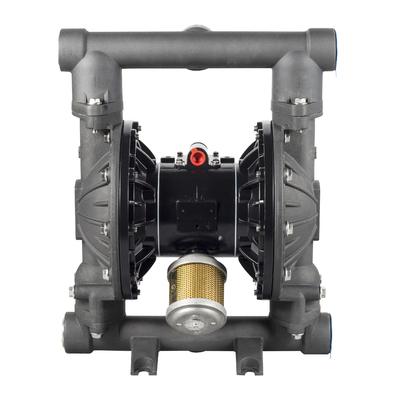

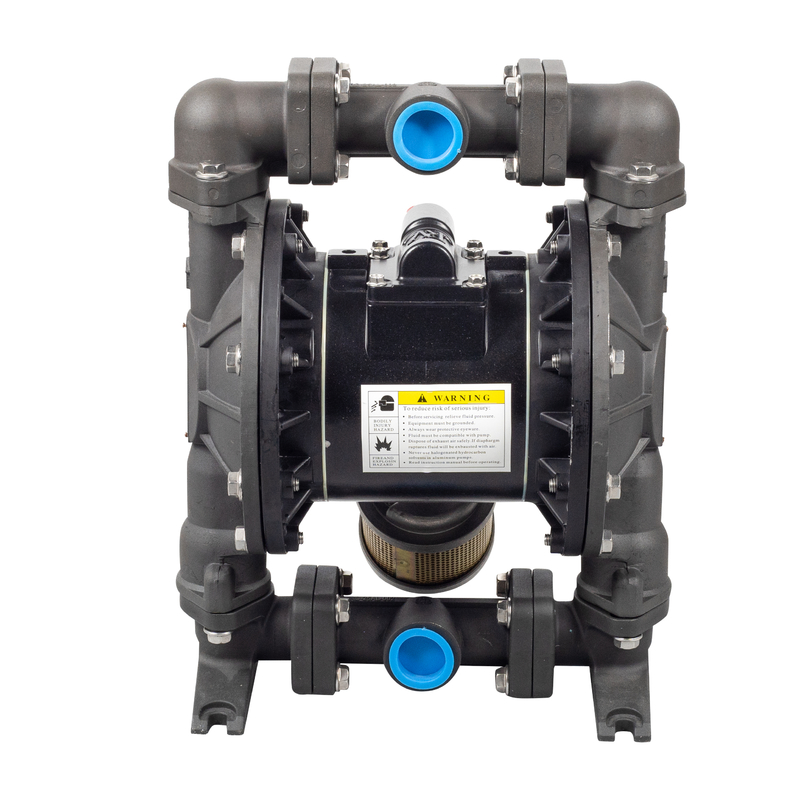

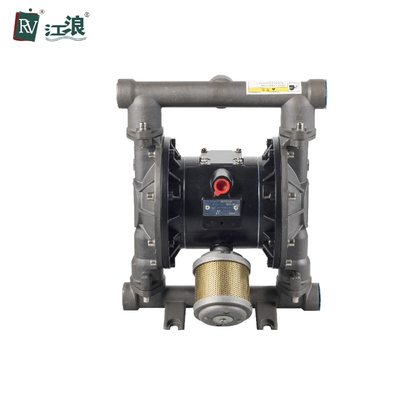

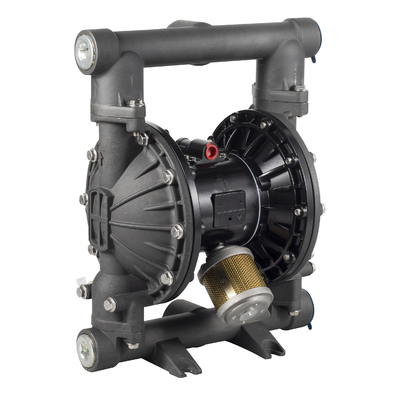

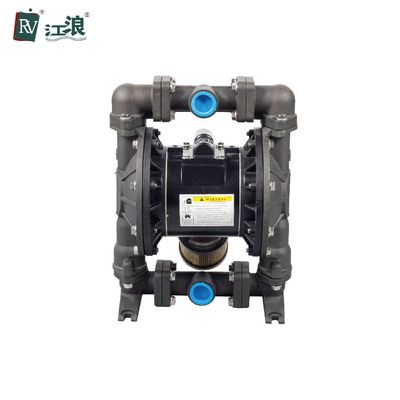

Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure

Large Image : Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	RV
Model Number:	RV-A-73311

Payment & Shipping Terms:

Minimum Order Quantity:	2
Price:	$1,404.10

Contact Now

Aluminum Diaphragm Pump 1 Inch Outlet 120psi Max Pressure

Description

Outlet Size:	1 Inch	Material:	Aluminum
Diaphragm Material:	PTFE	Max Pressure:	120psi(0.84Mpa,8.4bar)
Max Flow:	90gpm(340pm)	Max Working Pressure:	120 Psi (0.84Mpa , 8.4bar)
Max Flow Rate:	90gpm(340lpm)	Max Reciprocating Speed:	200cpm
Max Suction Height:	5m	Max Permitted Grain:	0.2in. (5mm)
Max Air Consumption:	45scfm(22.5L/S)	Air Inlet Size:	1/2 In
Air Outlet Size:	3/4 In	Fluid Inlet Size:	11/2
Fluid Outlet Size:	11/2	Weight:	16kg
Highlight:	1 inch aluminum diaphragm pump , 120psi aluminum diaphragm pump , high pressure diaphragm pump

Aluminum Diaphragm Pumps - Air-operated Double Diaphragm Pumps

Product Specifications

Attribute	Value
Warranty	1 year
Customized Support	OEM, ODM
Power Source	Pneumatic
Pressure	Low Pressure
Structure	Diaphragm Pump
Outlet Size	1 inch
Material	Aluminum
Diaphragm Material	PTFE
Speed	200cpm
Max Pressure	120psi (0.84Mpa, 8.4bar)
Max Flow	90gpm (340pm)

Technical Specifications

Parameter	Value
Max Working Pressure	120 psi (0.84Mpa, 8.4bar)
Max Flow Rate	90gpm (340lpm)
Max Reciprocating Speed	200cpm
Max Suction Height (Dry Sucking)	5m
Max Permitted Grain	0.2in. (5mm)
Max Air Consumption	45scfm (22.5L/S)
Air Inlet Size	1/2 in
Air Outlet Size	3/4 in
Fluid Inlet Size	1 1/2 in
Fluid Outlet Size	1 1/2 in
Weight	16kg (Aluminum pump)

Product Advantages

Packaging & Delivery

Company Profile

Jiangliang Technology Co., Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in mainland China. As a High-Tech Enterprise and Credit Company, we specialize in diaphragm pumps and control valves with over 40 patents, including 10 invention patents.

Our Service

All inquiries replied within 24 working hours
Professional pump producer with design team
Standard export packaging (non-fumigation wooden cases)
Fast after-sales service

Frequently Asked Questions

Q: What is MOQ?

A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.

Q: What's the payment method?

A: D/P, T/T, Western Union - please confirm exact payment terms with us when ordering.

Q: What is the delivery time?

A: Typically 1-7 working days, depending on quantity.

Q: How are products packaged?

A: Cartons with foam inside, wooden cases, or pallets depending on order size.

Q: What is the warranty period?

A: 15 years warranty for air motor, 5 years for pump body.
