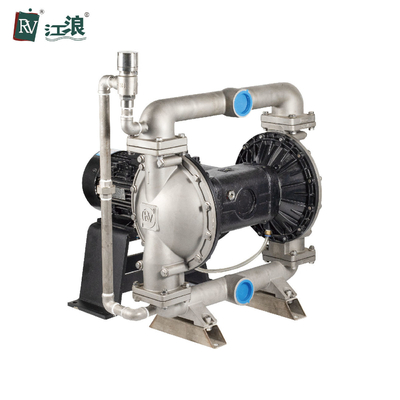

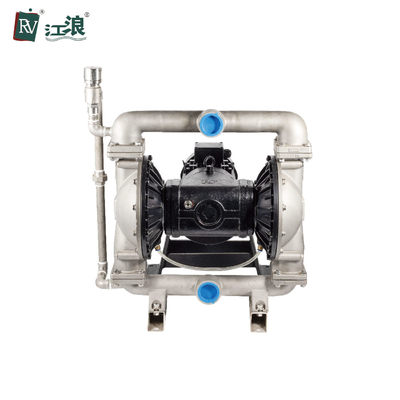

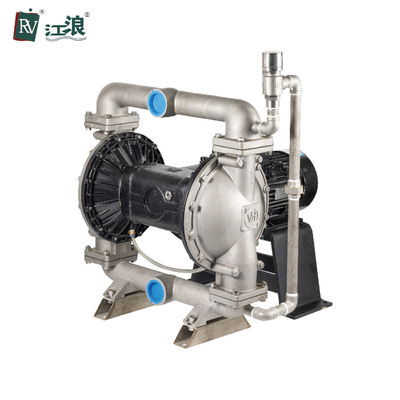

2 Inch High Quality Stainless Steel Electric Diaphragm Pump
Product Specifications
| Attribute |
Value |
| Warranty |
1 year |
| Customized Support |
OEM, ODM |
| Application |
Automotive Industry, Biofuel Industry, Commercial Buildings, Developing World Water Solutions, District Energy, Drinking water treatment, Family Homes, Food and Beverage Industry, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture |
| Power Source |
Electric |
| Pressure |
Low Pressure |
| Structure |
Diaphragm Pump |
| Outlet Size |
50mm |
| Voltage |
220V |
| Material |
Stainless Steel |
| Color |
Silver |
| Weight |
140kg |
| Flow Rate |
10.5m³/h |
| Brand |
RV |
| Packing |
Wooden case |
| Motor |
Explosion-Proof |
| Function |
Transport liquid |
Technical Specifications
| Specification |
Value |
| Max Outlet Pressure |
0.6Mpa, 6bar |
| Max Flow Rate |
10.5m³/h |
| Max Suction Lift |
3m |
| Motor Power |
3.0KW standard (4.0KW optional) |
| Motor Speed |
1450r/min |
| Fluid Inlet Size |
1 inch Threaded or Flange |
| Fluid Outlet Size |
1 inch Threaded or Flange |
| Weight |
Stainless steel pump: 122kg, Aluminum pump: 77kg, Carbon steel pump: 115kg |
Our Advantages
Packing & Delivery
Company Profile
Shanghai Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China. Shanghai Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years.
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities. Our main products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and related products.
Our pumps and valves have been granted more than 40 patents, including 10 invention patents. We participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry (national standard No.: SH/T 3191-2017). We hold necessary certificates including TS.A National Manufacturing License, CE, ATex, ISO9001, and SGS.
Our Service
- All enquiries replied within 24 working hours
- Professional pump producer with dedicated design team
- Standard export wooden case packaging (non-fumigation)
- Fast after-sales service
Frequently Asked Questions
Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.
Q: What's the payment?
A: D/P, T/T, Western Union, please confirm with us with exact order.
Q: What is the delivery time?
A: Depends on quantity. Generally 1-7 working days.
Q: What about package?
A: Cartons with foam inside & wooden case & pallet.
Q: How are the products delivered to us?
A: By International express or sea.
Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.
Q: Whether the products can be made of different standard?
A: Yes. We can produce products according to custom needs.
