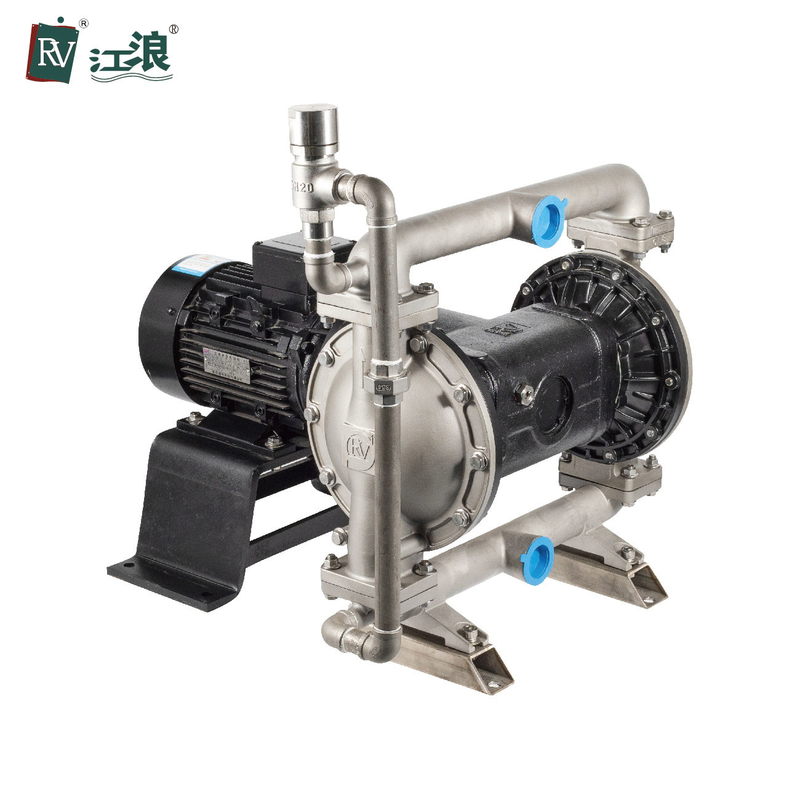

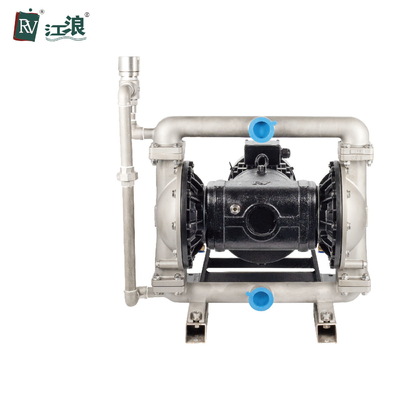

Stainless Steel 316 Double Electric Diaphragm Pump Waste Oil Operated 1.5"

Stainless Steel 316 Double Electric Diaphragm Pump Waste Oil Operated 1.5"
Stainless Steel 316 Double Electric Diaphragm Pump Waste Oil Operated 1.5" Stainless Steel 316 Double Electric Diaphragm Pump Waste Oil Operated 1.5"

Large Image :  Stainless Steel 316 Double Electric Diaphragm Pump Waste Oil Operated 1.5"

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVE-BL411-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Stainless Steel 316 Double Electric Diaphragm Pump Waste Oil Operated 1.5"

Description
Pump Type: EODD Warranty: 1 Year Except Easy Wear Parts
Origin: Shanghai, China Max. Working Pressure: 0.6 Mpa
Max. Flow Rate: 6 M³/h Suction Lift: 3m
Motor Power: Standard 2.2 Kw Motor Speed: 1450 R/min
Inlet & Outlet: 1-1/2" Inch Pump Casting: Stainless Steel 316
High Light:

Stainless Steel 316 Double Diaphragm Pump

,

Waste Oil Operated Diaphragm Pump

,

1.5" Electric Dual Diaphragm Pump

1.5" Electric Stainless Steel 316 Waste Oil Operated Double Diaphragm Pump



Electric Diaphragm Pump Features:



1. Diaphragm pump moving system and reducer components are installed in the same box.

2. The output shaft of reducer can function simultaneously as input shaft of back-and-forth motion, thereby to get a compact structure.

3. The installation datum is uniformly set on the shell; the motor and the shell are connected by flange

4. Larger motion chamber for more storage of lubricating oil, which is better for heat radiation

5. Back-and -forth motion is supported by linear bearing, to get less friction resistance and easier replacement.

6. Inner placed ventilation pipe help better air changeover between diaphragm and inner splint.



Advantages:


1) can work under bad air source, the reversing valve is reliable, not easy broken.
2) smooth air path, no air path obstacle from 1/2'to 3'pump,ensuring a flexible reversing.
3) Reversing valve totally externally maintainable.
4) Less moving parts compared to other diaphragms pumps.
5) pilot type reversing valve with long working life, ensuring the continuous running.
6) one reversing valve suits to different size pumps.



Product Details



Max Outlet Pressure
0.6Mpa , 6bar
Max Flow Rate
6m³/h
Max Suction Lift
3m
Motor Power
2.2KW in standard (Senior3KW as options)

Motor Speed
1450r/min
Fluid Inlet Size
1 1/2 inch Threaded or Flange
Fluid Outlet Size
1 1/2 inch Threaded or Flange
Weight
Stainless steel pump: 122 KGS Aluminum pump: 77KGS Carbon steel pump: 115KGS





Exterior dimension drawing



Stainless Steel 316 Double Electric Diaphragm Pump Waste Oil Operated 1.5" 0



Stainless Steel 316 Double Electric Diaphragm Pump Waste Oil Operated 1.5" 1



Company Introduction:

Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are air operated diaphragm pumps and control valves, including: Air Operated Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Air Operated Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.

Jianglang participated in setting norms and standards for technical specification for air operated diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017.

Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.


Stainless Steel 316 Double Electric Diaphragm Pump Waste Oil Operated 1.5" 2





Diaphragm: longer life time

1. Increase the height of the diaphragm's arch portion, ensure to reduce the force to the diaphragm edge portation and avoid the diaphragms been pull out.

2. Center place with O-ring design, enhance seal performance.


FAQ



1. Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity. Generally Speaking , 1-7 working day .

4. Q: What about package?
A: Cartons with foam inside & wooden case & Pallet

5. Q: How are the products delivered to us?
A: By International express or Sea.

6. Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
