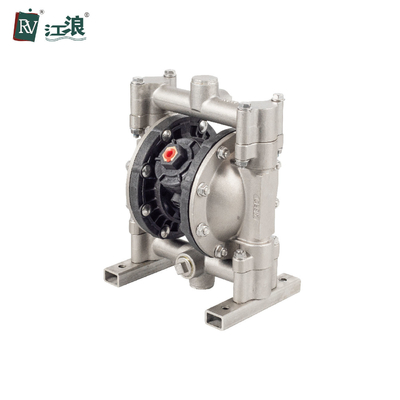

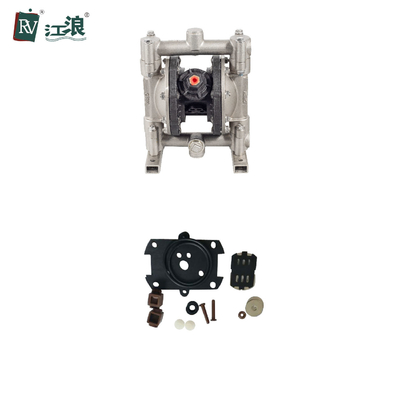

Pneumatic Stainless Steel Double Diaphragm Pump For Water Oil Lotion Transfer 1/2 Inch

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

Pneumatic Stainless Steel Double Diaphragm Pump For Water Oil Lotion Transfer 1/2 Inch

Pneumatic Stainless Steel Double Diaphragm Pump For Water Oil Lotion Transfer 1/2 Inch
Pneumatic Stainless Steel Double Diaphragm Pump For Water Oil Lotion Transfer 1/2 Inch Pneumatic Stainless Steel Double Diaphragm Pump For Water Oil Lotion Transfer 1/2 Inch

Large Image :  Pneumatic Stainless Steel Double Diaphragm Pump For Water Oil Lotion Transfer 1/2 Inch

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-54366-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Pneumatic Stainless Steel Double Diaphragm Pump For Water Oil Lotion Transfer 1/2 Inch

Description
Product Name: Air Diaphragm Pump Type: Sump Pump
Pump Casting: Stainless Steel 304 Theory: REciprocating Pump
Lift: 230 FT / 70meter Application: Dinking Water Treatment, Raw Water Intake
Advantages: Explosion-proof Zero Leak Weight: 6.8kg
High Light:

Oil Pneumatic Diaphragm Pump

,

Pneumatic Air Diaphragm Pump

,

1/2 Inch Stainless Steel Diaphragm Pump

1/2 Inch Stainless Steel Air Opreated Pneumatic Water Oil Lotion Transfer Double Diaphragm Pump





Stainless Steel Diaphragm Pump Advantages:

  • Idling ,Self-priming , Submerse capability.
  • Provide stall-free, ice-free zero leak operation.
  • Epoxy-coated air section for tough environmental conditions.
  • Low shear force , not easy to damage the material structure.
  • Bolt joint design provides even sealing pressure for optimal performance
  • Modular air valve,low pulsation operation,providing smooth and rapid changeover.
  • No electricity . It's safe and realiable while using in the flammable and explor place .
  • Diversity of material,no rotating parts,applicable to various erosive situations.
  • Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.
  • Delivery lift and flow can pass the pneumatic valve open to realize the stepless adjustment.



Max Discharge Pressure 100 psi ( 0.7Mpa, 7bar )
Max Capacity 15 gpm ( 57lpm )
Max Reciprocating Speed 400 cpm
Power Pnuematic
Max Permitted Grain 3/32 in ( 2.5mm )
Advantages: Explosion-proof
Air Inlet Size 1/4 in.npt (f)
Air Outlet Size 3/8 in.npt (f)
Fluid Inlet Size 1/2 in.
Fluid Outlet Size 1/2 in.
Net Weight 6.8kg






Pneumatic Stainless Steel Double Diaphragm Pump For Water Oil Lotion Transfer 1/2 Inch 0




Stainless Steel Diaphragm Pump Application



The air operated diaphragm pumps use compressed air as power source, and it is the most advanced type of air operated diaphragm pumps in market for the moment. It adopts three-way air pilot valve to achieve real no dead stop and faster reversing. It is widely applied in waste water treatment, chemical industry, petrochemical industry, painting, ceramics, environmental protection, printing and dyeing, etc. to deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.





Company Introduction



Jianglang Technology Co., Ltd participated in setting norms and standard No.: SH/T3191-2017. The company awarded as High-Tech Enterprise and Credit Company, our technology teams has got strong support from Shanghai University. Jianglang Technology provide a host of auxiliary training support programs covering areas such as equipment maintenance, air operated diaphragm pump selection skills, fluid transfer solution, chemical compatibility guide and even system equipment support.




FAQ



1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q: What're your payments ?

A: T/T,Western Union,L/C etc.



3. Q: What about the package ?

A: Standard export plywood case or carton.



4. Q: How long is the warranty ?

A: According to international standards, products in standard operation is 1 year,except wearable parts.



5. Q: The use of air diaphragm pump have?

A: air operated diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

Air operated diaphragm pump can suck the paint, pigment, glue and adhesive etc.

Air operated diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

Air operated  diaphragm pump can suck various toxin and flammable or volatility liquid etc.

Air operated diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.



6. Q: How air operated diaphragm pump quality and service?

A: Our air operated diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
