Ptfe Coated Diaphragm PTFE 3 Inch Diaphragm Pump Parts

China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

Ptfe Coated Diaphragm PTFE 3 Inch Diaphragm Pump Parts

Ptfe Coated Diaphragm PTFE 3 Inch Diaphragm Pump Parts
Ptfe Coated Diaphragm PTFE 3 Inch Diaphragm Pump Parts

Large Image :  Ptfe Coated Diaphragm PTFE 3 Inch Diaphragm Pump Parts

Product Details:
Place of Origin: CHINA
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: Carton,Plywood case
Delivery Time: 7-21 Work days
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET /Month

Ptfe Coated Diaphragm PTFE 3 Inch Diaphragm Pump Parts

Materal: Imported PTFE Brand: RV
Color: White
High Light:

ptfe coated diaphragm PTFE


3 diaphragm pump parts


PTFE diaphragm

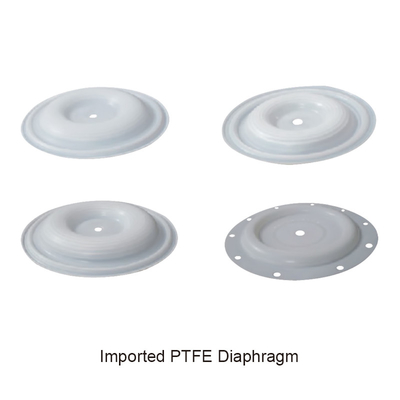

Air Diaphragm Pump Parts Diaphragm Imported PTFE




Imported PTFE



-Buna-N Diaphragm suitable for transporting oily materials ,with good fatigue strength
-Neoprene Rubber Diaphragm suitable for slight acid and alkali liquids ,conveying slurry ,waste water and ect.
- Diaphragm suitable for acid and alkali chemical materials and liquids of higher temperature.
-EPDM Diaphragm suitable for slight and alkali liquids with aging resistance
-PTFE Diaphragm suitable for strong acid and alkali chemical materials, to be used together with rubber diaphragm
-Hytrel diaphragm good anti –abrasion ,can replace Buna-N, Apply to the majority of the neutral

Applicable model:


RV06(1/4"), RV10(3/8"), RV15(1/2"), RV20(3/4"), RV25(1"), RV40(1.5"), RV50(2"), RV80(3")


Packing & Shipping:

Ptfe Coated Diaphragm PTFE 3 Inch Diaphragm Pump Parts 0Ptfe Coated Diaphragm PTFE 3 Inch Diaphragm Pump Parts 1
Our service

* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service

Company Introduction:

Shanghai Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Shanghai Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
The pumps and valves have been granted more than 40 patents, including 10 invention patents. Shanghai Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Shanghai Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.

Shanghai Jianglang mainly provides services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and Pharmaceutical industry.
Shanghai Jianglang has established long term business relationship with famous enterprise such as BASF,Bayer,SAMSUNG ect. Its RV pneumatic diaphragm pump has been exported to more than 70 countries and regions.

We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.

Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.

Diaphragm material: PTFE, Santoprene, , Hytrel, Buna-N, etc.

Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"

Connection type:
-Threaded connection: Plastic pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic pumps from 1/2" to 3".
Ptfe Coated Diaphragm PTFE 3 Inch Diaphragm Pump Parts 2Ptfe Coated Diaphragm PTFE 3 Inch Diaphragm Pump Parts 3Ptfe Coated Diaphragm PTFE 3 Inch Diaphragm Pump Parts 4



1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
