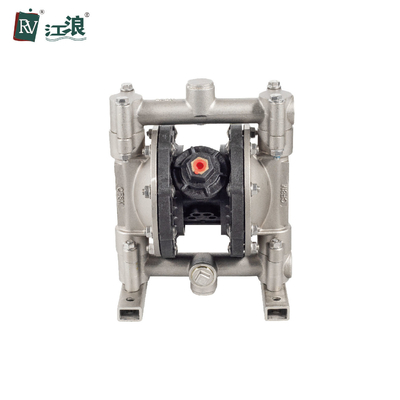

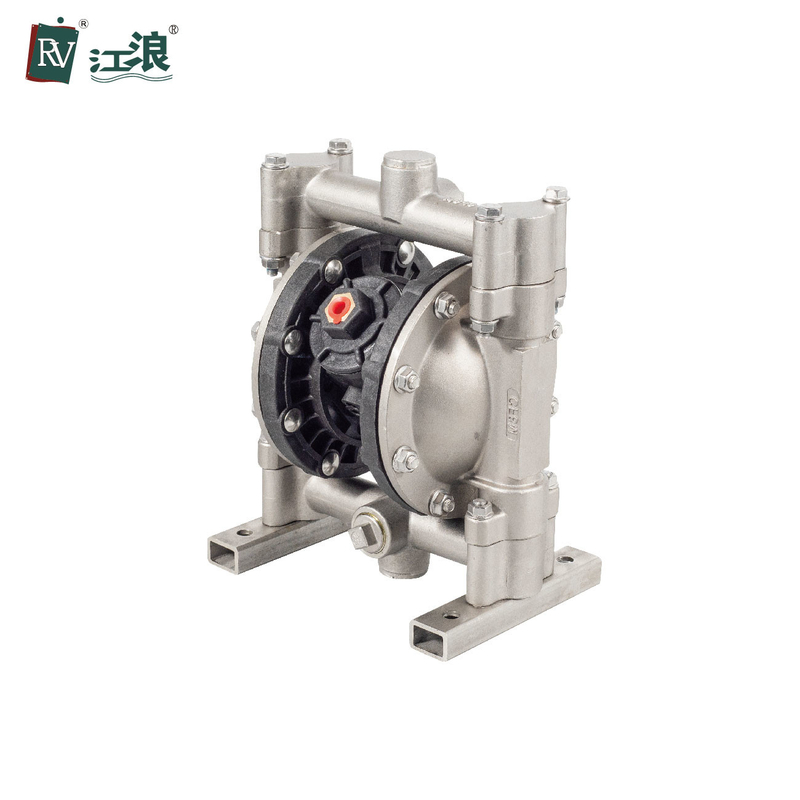

12mm 1/2" Stainless Steel Diaphragm Pump Water Treatment Plant Pneumatic

12mm 1/2" Stainless Steel Diaphragm Pump Water Treatment Plant Pneumatic
12mm 1/2" Stainless Steel Diaphragm Pump Water Treatment Plant Pneumatic 12mm 1/2" Stainless Steel Diaphragm Pump Water Treatment Plant Pneumatic

Large Image :  12mm 1/2" Stainless Steel Diaphragm Pump Water Treatment Plant Pneumatic

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVS-54311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

12mm 1/2" Stainless Steel Diaphragm Pump Water Treatment Plant Pneumatic

Description
Product Name: Air Diaphragm Pump Type: Sump Pump
Pump Casting: Stainless Steel 304 Theory: REciprocating Pump
Lift: 230 FT / 70meter Application: Dinking Water Treatment, Raw Water Intake
Advantages: Explosion-proof Zero Leak Weight: 6.8kgs
High Light:

Stainless Steel Diaphragm Pumps

,

12mm 1/2" Stainless Steel diaphragm pump water treatment plant

,

12mm 1/2" diaphragm pump wastewater treatment

12mm 1/2" Stainless Steel Diaphragm Pump Water Treatment Plant Pneumatic



Waste Water Diaphragm Pump Advantages:

  • Idling ,Self-priming , Submerse capability.
  • Provide stall-free, ice-free zero leak operation.
  • Epoxy-coated air section for tough environmental conditions.
  • Low shear force , not easy to damage the material structure.
  • Bolt joint design provides even sealing pressure for optimal performance
  • Modular air valve,low pulsation operation,providing smooth and rapid changeover.
  • No electricity . It's safe and realiable while using in the flammable and explor place .
  • Diversity of material,no rotating parts,applicable to various erosive situations.
  • Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.
  • Delivery lift and flow can pass the pneumatic valve open to realize the stepless adjustment.



Max Discharge Pressure 100 psi ( 0.7Mpa, 7bar )
Max Capacity 15 gpm ( 57lpm )
Max Reciprocating Speed 400 cpm
Power Pnuematic
Max Permitted Grain 3/32 in ( 2.5mm )
Advantages: Explosion-proof
Air Inlet Size 1/4 in.npt (f)
Air Outlet Size 3/8 in.npt (f)
Fluid Inlet Size 1/2 in.
Fluid Outlet Size 1/2 in.
Net Weight 6.8kg






12mm 1/2" Stainless Steel Diaphragm Pump Water Treatment Plant Pneumatic 0



Performance curve diagram



12mm 1/2" Stainless Steel Diaphragm Pump Water Treatment Plant Pneumatic 1







Packing & Shipping:
12mm 1/2" Stainless Steel Diaphragm Pump Water Treatment Plant Pneumatic 212mm 1/2" Stainless Steel Diaphragm Pump Water Treatment Plant Pneumatic 3
Company Introduction:


Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are air diaphragm pump and control valves, including: Air Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Air Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.
The air diaphragm pump and valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.




FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q: What're your payments ?

A: T/T,Western Union,L/C etc.



3. Q: What about the package ?

A: Standard export plywood case or carton.



4. Q: How long is the warranty ?

A: According to international standards, products in standard operation is 1 year,except wearable parts.



5. Q: The use of air diaphragm pump have?

A: air operated diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

Air operated diaphragm pump can suck the paint, pigment, glue and adhesive etc.

Air operated diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

Air operated  diaphragm pump can suck various toxin and flammable or volatility liquid etc.

Air operated diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.



6. Q: How air operated diaphragm pump quality and service?

A: Our air operated diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
