1/2 Inch Sewage Diaphragm Pump Wastewater Treatment Aluminum Pneumatic

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

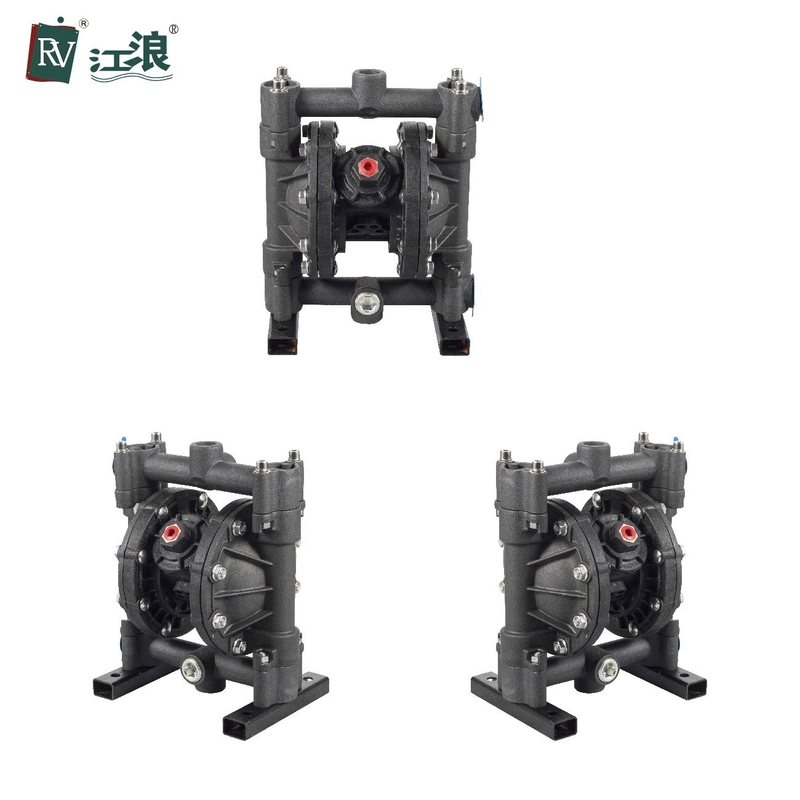

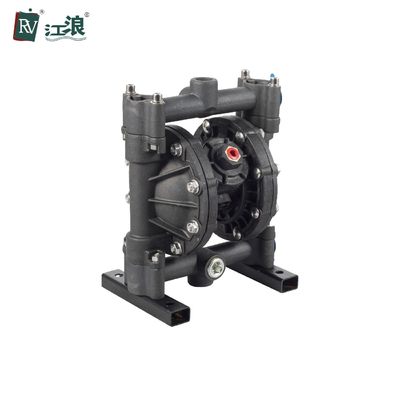

1/2 Inch Sewage Diaphragm Pump Wastewater Treatment Aluminum Pneumatic

1/2 Inch Sewage Diaphragm Pump Wastewater Treatment Aluminum Pneumatic
1/2 Inch Sewage Diaphragm Pump Wastewater Treatment Aluminum Pneumatic 1/2 Inch Sewage Diaphragm Pump Wastewater Treatment Aluminum Pneumatic

Large Image :  1/2 Inch Sewage Diaphragm Pump Wastewater Treatment Aluminum Pneumatic

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-53366-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

1/2 Inch Sewage Diaphragm Pump Wastewater Treatment Aluminum Pneumatic

Description
Product Name: Air Diaphragm Pump Fuel: Air Driven
Brand Name: RV Model Number: RVA-53366-T
Lift: 230 FT / 70meter Application: Dinking Water Treatment, Raw Water Intake
Material Of Diaphragm: Santoprene Weight: 4.6kgs
High Light:

sewage diaphragm pump wastewater treatment

,

1/2 inch sewage diaphragm pump

,

diaphragm pump water treatment plant

1/2 Inch Sewage Diaphragm Pump Wastewater Treatment Aluminum Pneumatic



DESCRIPTION



RV waste water diaphragm pump are suitable for aggressive liquids, even with viscosity and solids in suspension. They are built with an anti-stalling pneumatic circuit which ensures the highest possible level of security and efficiency and doesn’t require lubricated air.

RV waste water diaphragm pump are available in several materials and dimensions and the ATEX version can work in potentially explosive atmosphere.



MAIN FEATURES

  • Available in PP, PVDF and AISI316
  • Suitable for high viscosity fluids and solids in suspension
  • Suitable for corrosive atmospheres
  • Suitable for potentially explosive atmospheres in their ATEX
  • New generation PTFE diaphragms with embodied in/out piston
  • Ecological design ensuring a reduction of air consumption
  • Manufactured with anti-stalling circuit and ice barrier protectives to keep performances unaltered over time
  • Individually tested before shipment
  • Easy assembling and disassembling



Max Discharge Pressure 100 psi ( 0.7Mpa, 7bar )
Max Capacity 15 gpm ( 57lpm )
Max Reciprocating Speed 400 cpm
Power Pnuematic
Max Permitted Grain 3/32 in ( 2.5mm )
Advantages: Explosion-proof
Air Inlet Size 1/4 in.npt (f)
Air Outlet Size 3/8 in.npt (f)
Fluid Inlet Size 3/4 in.
Fluid Outlet Size 3/4 in.
Net Weight 4.6kgs






1/2 Inch Sewage Diaphragm Pump Wastewater Treatment Aluminum Pneumatic 0




Waste Water Diaphragm Pump Application



The air driven double diaphragm pumps use compressed air as power source, and it is the most advanced type of air operated diaphragm pumps in market for the moment. It adopts three-way air pilot valve to achieve real no dead stop and faster reversing. It is widely applied in waste water treatment, chemical industry, petrochemical industry, painting, ceramics, environmental protection, printing and dyeing, etc. to deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.



Packing & Shipping:



1/2 Inch Sewage Diaphragm Pump Wastewater Treatment Aluminum Pneumatic 1



Spraying And Cleaning



Air driven double Diaphragm pumps are perfect for spraying paint, cleaning roofs and spraying conveyers / bottles for anti-static. These air operated diaphragm pump are suited for these types of applications due to their durability and the volume produced by each air operated diaphragm pump. The air operated diaphragm pump, combined with the power of an air compressor, allows cleaning chemicals, paints and other fluids to be dispensed at a constant rate.


FAQ



1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q: What're your payments ?

A: T/T,Western Union,L/C etc.



3. Q: What about the package ?

A: Standard export plywood case or carton.



4. Q: How long is the warranty ?

A: According to international standards, products in standard operation is 1 year,except wearable parts.



5. Q: The use of air diaphragm pump have?

A: air diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

Air diaphragm pump can suck the paint, pigment, glue and adhesive etc.

Air diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

Air diaphragm pump can suck various toxin and flammable or volatility liquid etc.

Air diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.



6. Q: How air diaphragm pump quality and service?

A: Our air diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
