3/8 Inch Aluminum Diaphragm Pump For Chemical Transfer Pneumatic

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

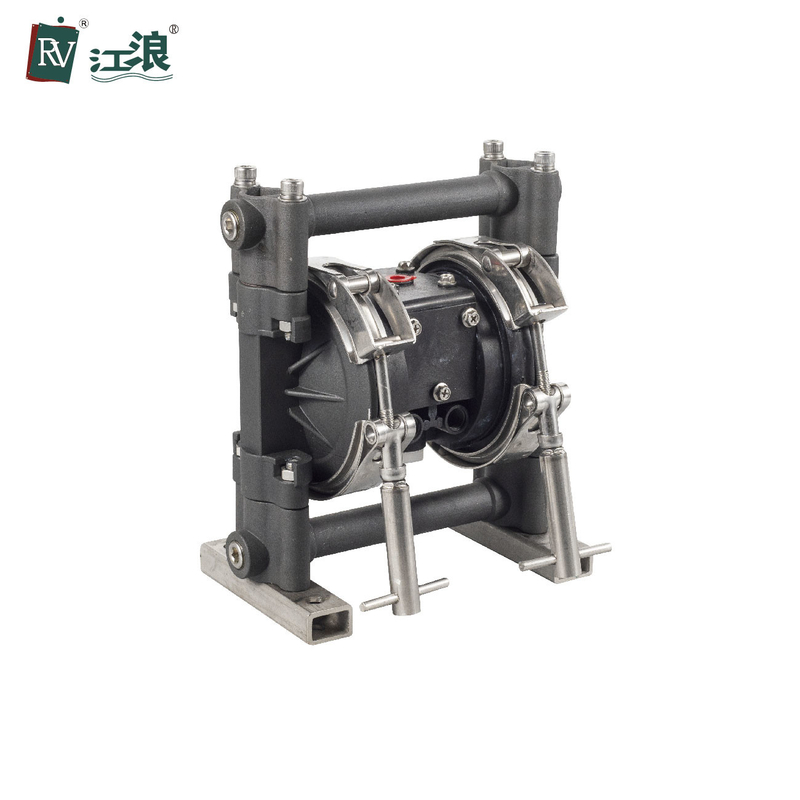

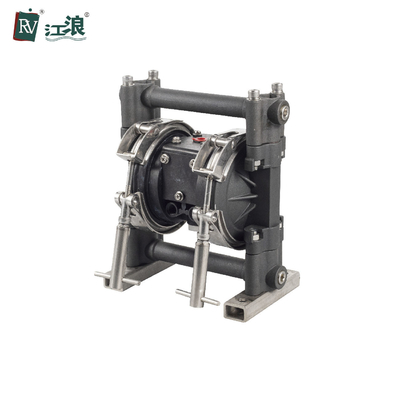

3/8 Inch Aluminum Diaphragm Pump For Chemical Transfer Pneumatic

3/8 Inch Aluminum Diaphragm Pump For Chemical Transfer Pneumatic
3/8 Inch Aluminum Diaphragm Pump For Chemical Transfer Pneumatic 3/8 Inch Aluminum Diaphragm Pump For Chemical Transfer Pneumatic

Large Image :  3/8 Inch Aluminum Diaphragm Pump For Chemical Transfer Pneumatic

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-33311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

3/8 Inch Aluminum Diaphragm Pump For Chemical Transfer Pneumatic

Description
Product: RV10 Air Operated Diaphragm Pump Fluid Inlet / Outlet: 3/8 N. P. T.
Max. Operating Pressure: 100 Psi (7bar) Max. Self-priming Capaity: 3.7 M
Max. Diameter Of Passing Solids: 1mm - 1.6mm Maximum Flow: 7 G.p.m. (26.5 L.p.m.)
Air Inlet: ( Female ) 1/4 Material: Aluminum Max. Temp. 95 °C
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
High Light:

3/8 inch Aluminum diaphragm pump

,

Aluminum diaphragm pump for chemical transfer

,

Chemical air diaphragm pump

3/8 inch Aluminum Alloy Pneumatic Industrial Chemical Resistant Water Diaphragm Pumps

Chemical Diaphragm Pump Principle:



As a result of air pressure acting on the entire surface of the diaphragm, the diaphragm is in a balanced condition while pumping. This measurably extends diaphragm life over that of mechanically air operated diaphragm pumps.


Because compressed air is limited, the maximum pressure is also safely limited. This air operated diaphragm pump are appropriately selected for on-demand intermittent requirements or continuous duty.
Air operated diaphragm pump are available with a wide choice of construction materials and accessories for any industrial.
We want to become the preferred partner of manufacturer leaders whenever they need the most reliable, fast and globally spread service for the air operated diaphragm pump.



Packing Status:


- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free



Type RV10
Inlet size 3/8"
Outlet size 3/8"
Air inlet size 1/4"
Suction lift (dry) 3m
Max. working pressure 7bar ; 0.7MPa
Max. flow rate 26.5 l/min(1.56m³/h)
Max. delivery lift 70m
Max. grain diameter 1.6mm
Weight Aluminum: 4kgs
Available body material Aluminum




3/8 Inch Aluminum Diaphragm Pump For Chemical Transfer Pneumatic 0
3/8 Inch Aluminum Diaphragm Pump For Chemical Transfer Pneumatic 13/8 Inch Aluminum Diaphragm Pump For Chemical Transfer Pneumatic 2
Company Introduction:

Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.
The mainly products are air operated diaphragm pumps and control valves, including: Air Operated Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Air Operated Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.

Air Operated Diaphragm Pump and Control Valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for air operated diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.


3/8 Inch Aluminum Diaphragm Pump For Chemical Transfer Pneumatic 3



Aluminum Material used for air motor & wetted body parts



• Medium corrosion and abrasion resistance

• Not for use with HHC’s


FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
