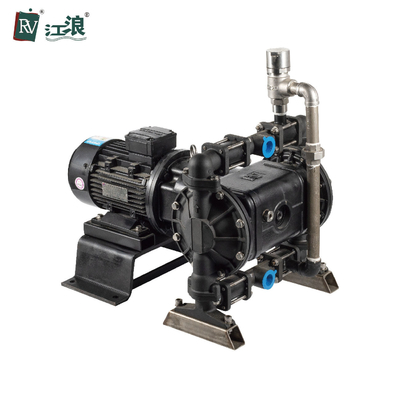

High Viscosity Diaphragm Pump Electric Driven Sludge 1 Inch

High Viscosity Diaphragm Pump Electric Driven Sludge 1 Inch
High Viscosity Diaphragm Pump Electric Driven Sludge 1 Inch High Viscosity Diaphragm Pump Electric Driven Sludge 1 Inch

Large Image :  High Viscosity Diaphragm Pump Electric Driven Sludge 1 Inch

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVE-73355-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

High Viscosity Diaphragm Pump Electric Driven Sludge 1 Inch

Description
Pump Type: Electric Pump Power Driven: By Electricity
Max. Capacity (l/min): 3.5 M³/h Max. Outlet Pressure: 0.6 Mpa
Suction Lift: 3 Meter Motor Power: 1.5 Kw In Standard
Motor Speed: 1450 R/min Inlet & Outlet: 1"inch Thread Or Flange
Ball: Hytrel Diaphragm: Hytrel
High Light:

High Viscosity diaphragm pump electric driven

,

High Viscosity diaphragm pump 1 inch

,

electric diaphragm sludge pump

High Viscosity Diaphragm Pump Electric Driven Sludge 1 Inch



Electric Diaphragm Pump Features:



1. Diaphragm pump moving system and reducer components are installed in the same box.

2. The output shaft of reducer can function simultaneously as input shaft of back-and-forth motion, thereby to get a compact structure.

3. The installation datum is uniformly set on the shell; the motor and the shell are connected by flange

4. Larger motion chamber for more storage of lubricating oil, which is better for heat radiation

5. Back-and -forth motion is supported by linear bearing, to get less friction resistance and easier replacement.

6. Inner placed ventilation pipe help better air changeover between diaphragm and inner splint.



Electric Diaphragm Pump Application:


The motor diaphragm pumps can be applied to ship/bus/train unloading, chemical production, batch treatment and mixing, large tank or tank area conveying, common feed-conveying, system flushing, wastewater treatment or fluid filtration, packaging or filling, recycling and recycling.



Application filed
Materials
Chemical
Acid, alkali, solvent, suspension, dispersion system.
petrochemical industry
thick oil, grease, slurry, sludge
Coating industry
Resin, solvent, colorant, paint
Daily chemical industry
Detergent, shampoo, emulsion, emulsion, hand cream, surfactant
Ceramic industry
Mud, porcelain pulp, lime pulp, clay pulp
Mining industry
Coal slurry, magma, mud, mortar, lubricating oil
Water treatment
Lime slurry, soft sediment, waste water, chemicals, wastewater
Food industry
Liquid semi-solid, chocolate, salt water, vinegar, syrup, vegetable oil, soybean oil, honey
Beverage industry
Yeast, syrup, concentrate, gas - liquid mixture, wine, juice, corn slurry
Medical
Solvent, acid, alkali, plant extract liquid, ointment and other kinds of pharmaceutical liquid
Paper making
Adhesives, resins, paints, inks, pigments, hydrogen peroxide
Electronics
Solvent, plating solution, cleaning solution, nitric acid, waste acid, corrosive acid, polishing solution
textile
Dye stuff, resins, gels
Building
Cement paste, ceramic tile binder, rock paste, ceiling finish
Car industry
Polishing emulsion, oil, coolant, automotive primer, oil emulsion, varnish, varnish additive, degreaser
furniture
Adhesives, varnishes, dispersants, solvents, colorants, wood gums, epoxy resins, starch binders



Product Details



Max Outlet Pressure
0.6Mpa , 6bar
Max Flow Rate
3.5m³/h
Max Suction Lift
3m
Motor Power
1.5KW in standard (Senior2.2KW as options)

Motor Speed
1450r/min
Fluid Inlet Size
1 inch Threaded or Flange
Fluid Outlet Size
1 inch Threaded or Flange
Weight
Aluminum pump: 77KGS







High Viscosity Diaphragm Pump Electric Driven Sludge 1 Inch 0



Packing & Shipping:


High Viscosity Diaphragm Pump Electric Driven Sludge 1 Inch 1High Viscosity Diaphragm Pump Electric Driven Sludge 1 Inch 2



Diaphragm: longer life time

1. Our raw material, Hytrel from Dupont, Santoprene from Exxon, PTFE from Daikin and Saint-Gobain etc.

2. Increase the height of the diaphragm's arch portion, ensure to reduce the force to the diaphragm edge portation and avoid the diaphragms been pull out.

3. Center place with O-ring design, enhance seal performance.


FAQ



1. Q: What is MOQ?
A: 1 pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity. Generally Speaking , 1-7 working day .

4. Q: What about package?
A: Cartons with foam inside & wooden case & Pallet

5. Q: How are the products delivered to us?
A: By International express or Sea.

6. Q: How long is the warranty?
A: 15 years warranty for air motor, 5 years for pump body.

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
