Mini Small Pneumatic Diaphragm Pump Oil Air Driven 1"

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

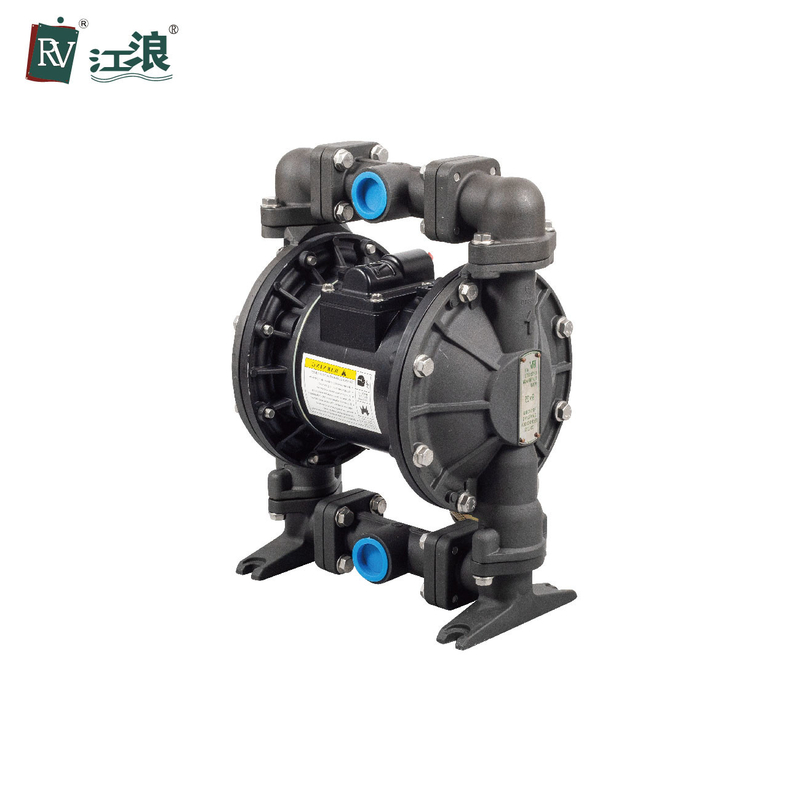

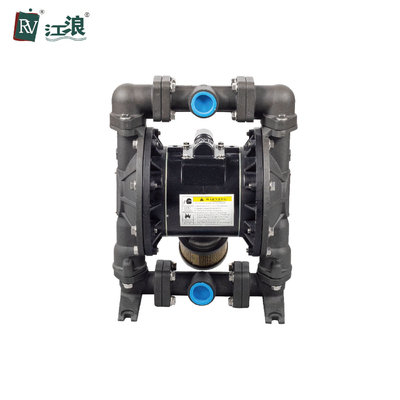

Mini Small Pneumatic Diaphragm Pump Oil Air Driven 1"

Mini Small Pneumatic Diaphragm Pump Oil Air Driven 1"
Mini Small Pneumatic Diaphragm Pump Oil Air Driven 1" Mini Small Pneumatic Diaphragm Pump Oil Air Driven 1"

Large Image :  Mini Small Pneumatic Diaphragm Pump Oil Air Driven 1"

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-74377-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Mini Small Pneumatic Diaphragm Pump Oil Air Driven 1"

Description
Product Name: Air Operated Diaphragm Pump Horese Power: 8.4 Bar
Pressure: Circulating Pump Type: 1"inch
Maximum Reciprocating Speed: 276 Cpm Certificateion: ISO 9001 , CE , ATex
Ball: Buna-N Membrane: Buna-N
High Light:

RV mini pneumatic diaphragm pump

,

RV small pneumatic diaphragm pump 1"

,

RV 1 inch diaphragm pumps

Mini Small Pneumatic Diaphragm Pump Oil Air Driven 1"



ADVANTAGES OF AIR DRIVEN DIAPHRAGM PUMPS



RV Stainless steel air driven diaphragm pumps provide stall-free, ice-free operation. The secret is a great design that comes equipped with unique air valves that offer energy savings and greater flow rates when compared to other air operated diaphragm pump technologies.

Additionally, for increased reliability, the RV air operated diaphragm pump has been designed with increased suction lifts and fewer moving parts.



PARAMETER





Place of Origin Shanghai, China
Power Source Pneumtic
Structure Air Driven Diaphragm Pump
Power Driven Compressed air
Max Permitted Grain 0.16 in(4mm)
Certification CE, ISO: 9001
Air Inlet Size 1/2 in.npt(f)
Wetted End Stainless Steel
Fluid Inlet Size 1 in.
Fluid Outlet Size 1 in.
Installation 340×230×440mm



Mini Small Pneumatic Diaphragm Pump Oil Air Driven 1" 0


AIR DRIVEN DIAPHRAGM PUMPS SELECTION:



The air driven diaphragm pumps offers many materials of construction,such as aluminum, stainless steel ,pp, pvdf ,etc. All pumps are available with imported diaphragm,ball and ball seat materials offering long product life and reduced maintenance.OEM/ODM are available, products can be customized according to your requirements.



Performance Introduction:



RV air operated diaphragm pump can not only pump fluid liquids and day powders, but also some mediums that usually hard to flow. It possesses the advantages of self-priming pump, submerged pump, shielding pump, slurry pump, impurity pump and other transportation machines.

1. No need to pilot water, suction lift up to 7m, pump head up to 80m, outlet pressure ≥ 0.8 MPa.

2. Spacious flowing way with good through-pass performance, the largest size of particles allowed can be up to 9.4mm. While pumping slurry and impurity, the abrasion is very low.

3. The pump head and capacity can be adjusted via the pressure of air source (between 0.1~0.84 MPa).

4. Temperature range of working environment: 5~65℃





FAQ
Q1. Can I have a sample order for air operated diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for air operated diaphragm order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
