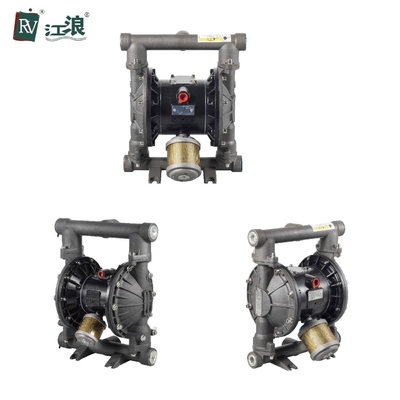

25mm 1" Aodd Diaphragm Pump For Cement Slurry Portable Submersible

25mm 1" Aodd Diaphragm Pump For Cement Slurry Portable Submersible
25mm 1" Aodd Diaphragm Pump For Cement Slurry Portable Submersible 25mm 1" Aodd Diaphragm Pump For Cement Slurry Portable Submersible

Large Image :  25mm 1" Aodd Diaphragm Pump For Cement Slurry Portable Submersible

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-73311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

25mm 1" Aodd Diaphragm Pump For Cement Slurry Portable Submersible

Description
Product Name: Air Diaphragm Pump Horese Power: 8.4 Bar
Pressure: Low Pressure Ourlet Size: 1"inch
Maximum Reciprocating Speed: 276 Cpm Certificateion: ISO 9001 , CE , ATex
Valve Ball: PTFE Diaphragm: PTFE
High Light:

aodd diaphragm pumps for cement 25mm 1"

,

25mm 1" aodd diaphragm pumps for cement

,

25mm 1" Aluminum gas powered diaphragm pump

25mm 1" Aodd Diaphragm Pump For Cement Slurry Portable Submersible

Aluminum Diaphragm Pump Features:



The RV Aluminum diaphragm pumps are CE certified.

Bolt joint design provides even sealing pressure for optimal performance.

Diaphragm,ball and ball seat adopt imported materials with longer service life.

Due to their pneumatic motor, they could be used in potentially explosive areas.

Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.



MAXIMUM LIQUID TEMPERATURE FOR RUBBER PARTS






Buna N 180°F (82°C)
Santoprene 180°F (82°C)
PTFE 212°F (100°C)
Hytrel 248°F (120°C)
248°F (120°C)
Max Air Consumption 45scfm(22.5L/s)
Air Inlet Size 1/2 in.npt(f)
Air Outlet Size 3/4 in.npt(f)
Fluid Inlet Size 1 in.
Fluid Outlet Size 1 in.
Net Weight

Aluminum 8.2kg








25mm 1" Aodd Diaphragm Pump For Cement Slurry Portable Submersible 0



25mm 1" Aodd Diaphragm Pump For Cement Slurry Portable Submersible 1




PTFE Material used for balls & diaphragms:



• Excellent when used with solvents

• Poor abrasion resistance

• Widest chemical compatibility with fluids



Company Introduction:



Jianglang Technology Co., Ltd offers the latest technology in air diaphragm pump.

Air diaphragm pump (AODD) pumps are positive displacement reciprocating pumps that can be used in multiple fluid-transfer applications, and thanks to an unique design characteristics, air diaphragm pump AODD pumps are ideally suited for applications that require a robust, plug-and play, and easy-to maintain pump.



Jianglang Technology Co., Ltd is a professional enterprise involved in manufacturing and marketing the best quality pneumatic air diaphragm pumps, electric diaphragm pumps for a wide range customers.

Jianglang Technology Co., Ltd headquartered in Shanghai, China with 2 production plants and branches.




25mm 1" Aodd Diaphragm Pump For Cement Slurry Portable Submersible 2



FAQ
Q1. Can I have a sample order for air diaphragm pump?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for air diaphragm order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for air diaphragm pump?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
