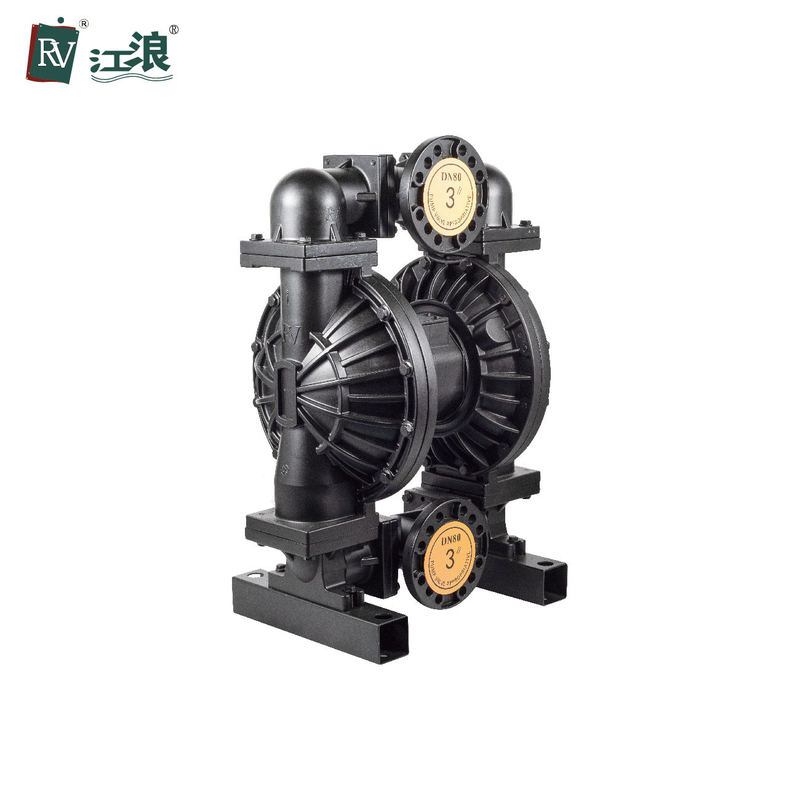

Chlorine Dosing Explosion Proof Diaphragm Pump 3 Inch Santoprene Diaphragm

Chlorine Dosing Explosion Proof Diaphragm Pump 3 Inch Santoprene Diaphragm
Chlorine Dosing Explosion Proof Diaphragm Pump 3 Inch Santoprene Diaphragm Chlorine Dosing Explosion Proof Diaphragm Pump 3 Inch Santoprene Diaphragm

Large Image :  Chlorine Dosing Explosion Proof Diaphragm Pump 3 Inch Santoprene Diaphragm

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVE-K6366-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Chlorine Dosing Explosion Proof Diaphragm Pump 3 Inch Santoprene Diaphragm

Description
Product Name: Air Diaphragm Pump Fuel: Air Driven
Brand Name: RV Model Number: RVE-K6366-F
Lift: 230 FT / 70meter Application: Dinking Water Treatment, Raw Water Intake
Material Of Diaphragm: Santoprene Weight: 115kg
High Light:

diaphragm chlorine dosing pump

,

explosion proof diaphragm pump 3 Inch

,

Aluminum aod pump

Chlorine Dosing Explosion Proof Diaphragm Pump 3 Inch Santoprene Diaphragm



MAIN FEATURES

  • Suitable for high viscosity fluids and solids in suspension
  • Suitable for corrosive atmospheres
  • Suitable for potentially explosive atmospheres in their ATEX
  • New generation PTFE diaphragms with embodied in/out piston
  • Ecological design ensuring a reduction of air consumption
  • Manufactured with anti-stalling circuit and ice barrier protectives to keep performances unaltered over time
  • Individually tested before shipment
  • Easy assembling and disassembling

Can diaphragm pumps pump air?



Air operated double diaphragm pumps offer a unique ability to pump a wide range of fluids found in the sanitary processing industries, and are suitable for a variety of applications. In certain situations, such as when pumping flammable liquids, these types of pumps can be the preferred style of pump.





Max Working Pressure 120 psi(0.84Mpa, 8.4bar)
Max Flow Rate 270 gpm ( 1022lpm )
Max Reciprocating Speed 135 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.37 in ( 9.4mm)
Max Air Consumption 180scfm(90L/s)
Air Inlet Size 3/4 in.npt(f)
Air Outlet Size 1 in.npt(f)
Fluid Inlet Size 3 in.
Fluid Outlet Size 3 in.
Net Weight Ductile Iron 115kg




Chlorine Dosing Explosion Proof Diaphragm Pump 3 Inch Santoprene Diaphragm 0

Performance curve diagram

Chlorine Dosing Explosion Proof Diaphragm Pump 3 Inch Santoprene Diaphragm 1



Packing & Shipping:


Chlorine Dosing Explosion Proof Diaphragm Pump 3 Inch Santoprene Diaphragm 2Chlorine Dosing Explosion Proof Diaphragm Pump 3 Inch Santoprene Diaphragm 3







Spraying And Cleaning



Aluminum Diaphragm pumps are perfect for spraying paint, cleaning roofs and spraying conveyers / bottles for anti-static. These air operated diaphragm pump are suited for these types of applications due to their durability and the volume produced by each air operated diaphragm pump. The air operated diaphragm pump, combined with the power of an air compressor, allows cleaning chemicals, paints and other fluids to be dispensed at a constant rate.




FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q: What're your payments ?

A: T/T,Western Union,L/C etc.



3. Q: What about the package ?

A: Standard export plywood case or carton.



4. Q: How long is the warranty ?

A: According to international standards, products in standard operation is 1 year,except wearable parts.



5. Q: The use of air diaphragm pump have?

A: air diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

Air diaphragm pump can suck the paint, pigment, glue and adhesive etc.

Air diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

Air diaphragm pump can suck various toxin and flammable or volatility liquid etc.

Air diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.



6. Q: How air diaphragm pump quality and service?

A: Our air diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
