Rv Oem Diaphragm Pump For Paint And Coating Transfer 120 Psi

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

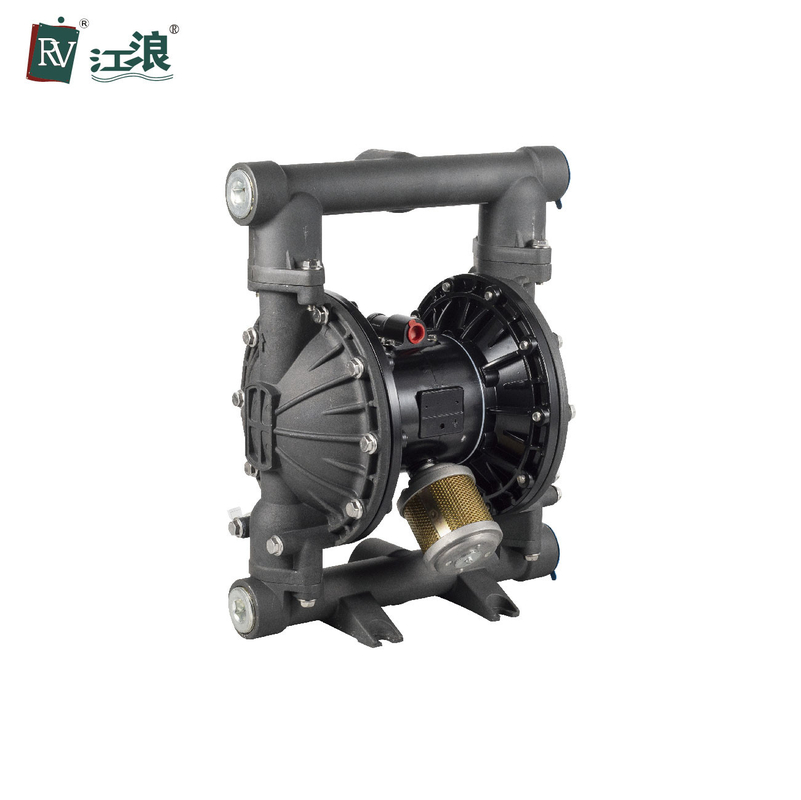

Rv Oem Diaphragm Pump For Paint And Coating Transfer 120 Psi

Rv Oem Diaphragm Pump For Paint And Coating Transfer 120 Psi
Rv Oem Diaphragm Pump For Paint And Coating Transfer 120 Psi Rv Oem Diaphragm Pump For Paint And Coating Transfer 120 Psi

Large Image :  Rv Oem Diaphragm Pump For Paint And Coating Transfer 120 Psi

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-B3311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Rv Oem Diaphragm Pump For Paint And Coating Transfer 120 Psi

Description
Materal: Aluminum Brand: RV
Color: Silver Gray Flow Rate: 340L/M
Usage: Air Diaphragm Pump Carton Size: 49*28*66cm
DN (mm): 40 Mm Model: RVA-B3311-F
Max. Pressure: 8.4 Bar Feature: Eco-Friendly
High Light:

rv diaphragm pump

,

diaphragm pump For Paint 120 psi

,

Aluminum air driven diaphragm pump

Rv Oem Diaphragm Pump For Paint And Coating Transfer 120 Psi



What Is Air Diaphragm Pump?



Air diaphragm pump is a new transport machinery , is currently one of the most innovative pump . Using compressed gas as a power source for a variety of corrosive liquid, with particles of liquid , high viscosity , volatile, flammable, poisonous liquid can be pumped optical exhaustion.

There are four air diaphragm pump material: plastic, aluminum, cast iron, stainless steel.

Diphragm use nitrile rubber, neoprene ,, depending on the liquid medium, to meet the needs of different users.



Air Diaphragm Pump Packing Status:


- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free





Place of Origin Shanghai, China
Power Source Pneumtic
Structure Air Diaphragm Pump
Power Driven Compressed air
Max Permitted Grain 0.2 in(5mm)
Certification CE, ISO: 9001
Air Inlet Size 1/2 in.npt(f)
Wetted End Aluminum
Fluid Inlet Size 1 1/2 in.
Fluid Outlet Size 1 1/2 in.
Installation 480×290×540mm





Rv Oem Diaphragm Pump For Paint And Coating Transfer 120 Psi 0




Packing & Shipping:

Rv Oem Diaphragm Pump For Paint And Coating Transfer 120 Psi 1Rv Oem Diaphragm Pump For Paint And Coating Transfer 120 Psi 2
Our service


Air diaphragm pump use a flexible diaphragm mounted on either side of the pump’s central chamber to pump fluids into and out of the pump’s body.

Working Principle:

The RV series air diaphragm pump are based on the following working principle: two flexible diaphragms are fitted into two symmetrical chambers of the air diaphragm pump severally and connected as a whole part by a link rod. The compressed air enters the central body through the in-suck terminal and impels the diaphragms in two chambers to drive consequently the link rod into move synchronously. At the same time, the air in the other chamber is expelled from the back side of the diaphragm. When piston reaches the end of the stroke, the air-distributing valve guide compressed air into the other chamber automati



Connection type:
-Threaded connection: Plastic air diaphragm pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic air diaphragm pump from 1/2" to 3".



Rv Oem Diaphragm Pump For Paint And Coating Transfer 120 Psi 3

AIR DIAPHRAGM PUMP SERVICES

· We provide guaranteed first-class technical support services to address all your pumping needs. Our clients can trust in our extensive capacity to offer custom solutions with consistent reliability and high performance.

· We implement comprehensive servicing that is tailor-made to match our client’s needs for air diaphragm pump.

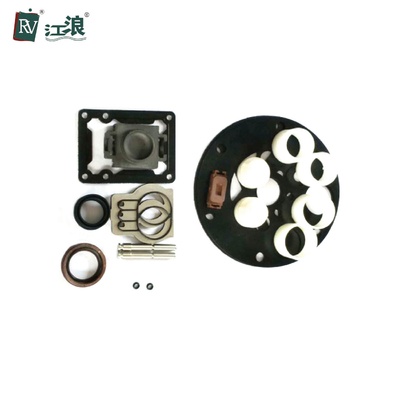

· We supply a vast range of spare parts to maximise the user’s air diaphragm pump experience and convenience.
