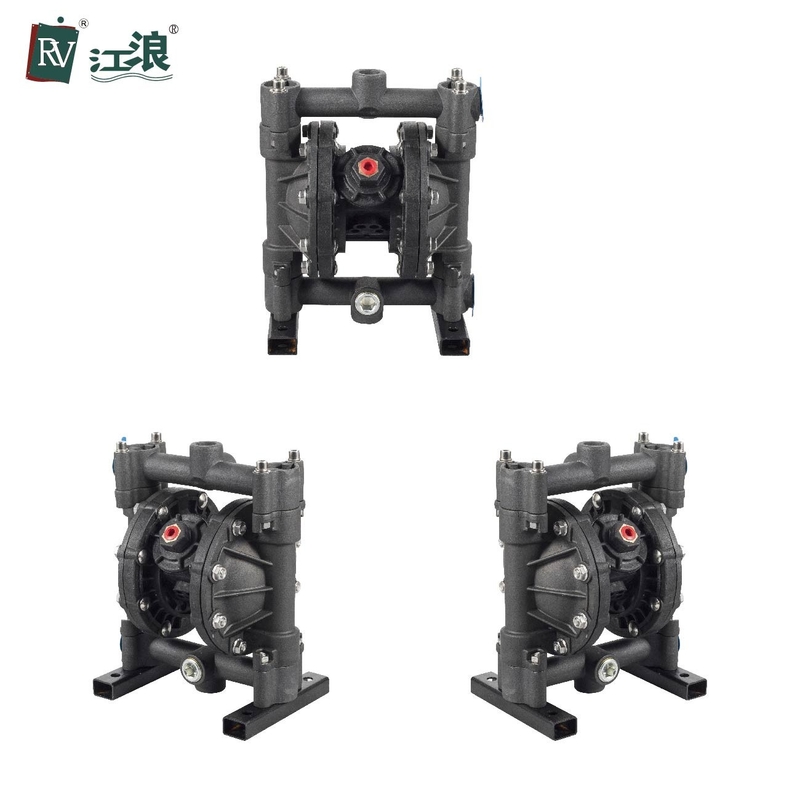

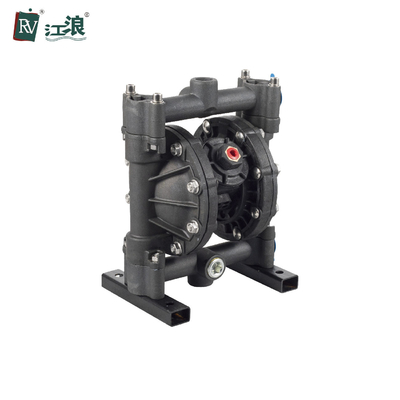

Center Block Plastic Diaphragm Pump Oil Transfer Low Pressure 1/2 Inch

Center Block Plastic Diaphragm Pump Oil Transfer Low Pressure 1/2 Inch
Center Block Plastic Diaphragm Pump Oil Transfer Low Pressure 1/2 Inch Center Block Plastic Diaphragm Pump Oil Transfer Low Pressure 1/2 Inch

Large Image :  Center Block Plastic Diaphragm Pump Oil Transfer Low Pressure 1/2 Inch

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-53388-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Center Block Plastic Diaphragm Pump Oil Transfer Low Pressure 1/2 Inch

Description
Product Name: Air Diaphragm Pump Fuel: Air Driven
Brand Name: RV Model Number: RVP-53388-T
Lift: 230 FT / 70meter Application: Dinking Water Treatment, Raw Water Intake
Weight: 4.6kg
High Light:

Center Block Plastic Diaphragm Pump

,

Plastic Diaphragm Pump Oil Transfer

,

diaphragm oil transfer pump

Aluminum Alloy Plastic Diaphragm Pump Oil Transfer Low Pressure 1/2 Inch



Air Driven Double Diaphragm Pump Application:



RV air driven double diaphragm pumps use compressed air as power source, and it is the most advanced type of diaphragm pumps in market for the moment. It adopts three-way air pilot valve to achieve real no dead stop and faster reversing. It is widely applied in waste water treatment, chemical industry, petrochemical industry, painting, ceramics, environmental protection, printing and dyeing, etc. to deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.



Outline Dimension Drawing

Center Block Plastic Diaphragm Pump Oil Transfer Low Pressure 1/2 Inch 0



Max Discharge Pressure 100 psi ( 0.7Mpa, 7bar )
Max Capacity 15 gpm ( 57lpm )
Max Reciprocating Speed 400 cpm
Power Pnuematic
Max Permitted Grain 3/32 in ( 2.5mm )
Advantages: Explosion-proof
Air Inlet Size 1/4 in.npt (f)
Air Outlet Size 3/8 in.npt (f)
Fluid Inlet Size 3/4 in.
Fluid Outlet Size 3/4 in.
Net Weight 4.8kg






Center Block Plastic Diaphragm Pump Oil Transfer Low Pressure 1/2 Inch 1





Packing & Shipping:



Center Block Plastic Diaphragm Pump Oil Transfer Low Pressure 1/2 Inch 2



Company Introduction:
Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.
Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years
We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities



Center Block Plastic Diaphragm Pump Oil Transfer Low Pressure 1/2 Inch 3Center Block Plastic Diaphragm Pump Oil Transfer Low Pressure 1/2 Inch 4



Industrial and Chemical


The selection of available housing and elastomer materials make our pumps adaptable for most highly aggressive or corrosive media. RV pumps’outstanding chemical resistance and robust design contribute to a reliable and safe operation.



FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q: What're your payments ?

A: T/T,Western Union,L/C etc.



3. Q: What about the package ?

A: Standard export plywood case or carton.



4. Q: How long is the warranty ?

A: According to international standards, products in standard operation is 1 year,except wearable parts.



5. Q: The use of air diaphragm pump have?

A: air diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

Air diaphragm pump can suck the paint, pigment, glue and adhesive etc.

Air diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

Air diaphragm pump can suck various toxin and flammable or volatility liquid etc.

Air diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.



6. Q: How air diaphragm pump quality and service?

A: Our air diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
