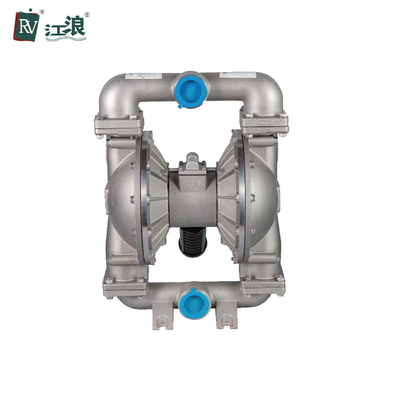

2 Inch Stainless Steel Air Diaphragm Pump Pneumatic Fluid Handling 570 Lpm

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

2 Inch Stainless Steel Air Diaphragm Pump Pneumatic Fluid Handling 570 Lpm

2 Inch Stainless Steel Air Diaphragm Pump  Pneumatic Fluid Handling 570 Lpm
2 Inch Stainless Steel Air Diaphragm Pump  Pneumatic Fluid Handling 570 Lpm

Large Image :  2 Inch Stainless Steel Air Diaphragm Pump Pneumatic Fluid Handling 570 Lpm

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-F4311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

2 Inch Stainless Steel Air Diaphragm Pump Pneumatic Fluid Handling 570 Lpm

Description
Materal: Stainless Steel Brand: RV
Color: Black Flow Rate: 568L/M
Weight: 50kgs Carton Size: 52cm×35cm×65cm
Size: 2 Inch Model: RVA-F4311-T
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
High Light:

stainless steel air diaphragm pump

,

2 inch air operated diaphragm pump

,

2 Inch Stainless Steel Air Diaphragm Pump 70 L/Min

2 Inch Stainless Steel Air Diaphragm Pump 70 L/Min Pneumatic Fluid Handling



As part of the RV Series of air diaphragm pump, this air diaphragm pump is designed for basic general industrial applications with good flow, reliability and air consumption. It utilizes a clamped-band design for easy assembly and disassembly. This robust combination is perfect for applications where reliable operation and consistent performance maintenance are required, including dewatering, paint & coatings and ceramics.


Air Diaphragm Pump HS CODE : 8413501090

Air Diaphragm Pump Packing Status:

- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free



Max Working Pressure 120 psi(0.84Mpa, 8.4bar)
Max Flow Rate 150 gpm(568 lpm)
Max Reciprocating Speed 145 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 6.3mm
Max Air Consumption 140 scfm(70L/s)
Air Inlet Size 1/2 in.npt(f)
Air Outlet Size 1/2 in.npt(f)
Fluid Inlet Size 2 in.npt(f)
Fluid Outlet Size 2 in.npt(f)
Weight SST pump 47kg







2 Inch Stainless Steel Air Diaphragm Pump  Pneumatic Fluid Handling 570 Lpm 0







2 Inch Stainless Steel Air Diaphragm Pump  Pneumatic Fluid Handling 570 Lpm 12 Inch Stainless Steel Air Diaphragm Pump  Pneumatic Fluid Handling 570 Lpm 2


FEATURES



  • Clamped connections for fast maintenance
  • Self-priming
  • Dry run without damage
  • Shear-sensitive
  • Longest Mean Time Between Repair
  • Superior anti-freezing
  • Increased On / Off reliability




2 Inch Stainless Steel Air Diaphragm Pump  Pneumatic Fluid Handling 570 Lpm 3

CUSTOMER FOCUS

Our total commitment to continually providing our customers with high quality air diaphragm pump and engineering excellence is integral to RV. We have a 96% repeat order rate demonstrating our resolute dedication to customer satisfaction.
