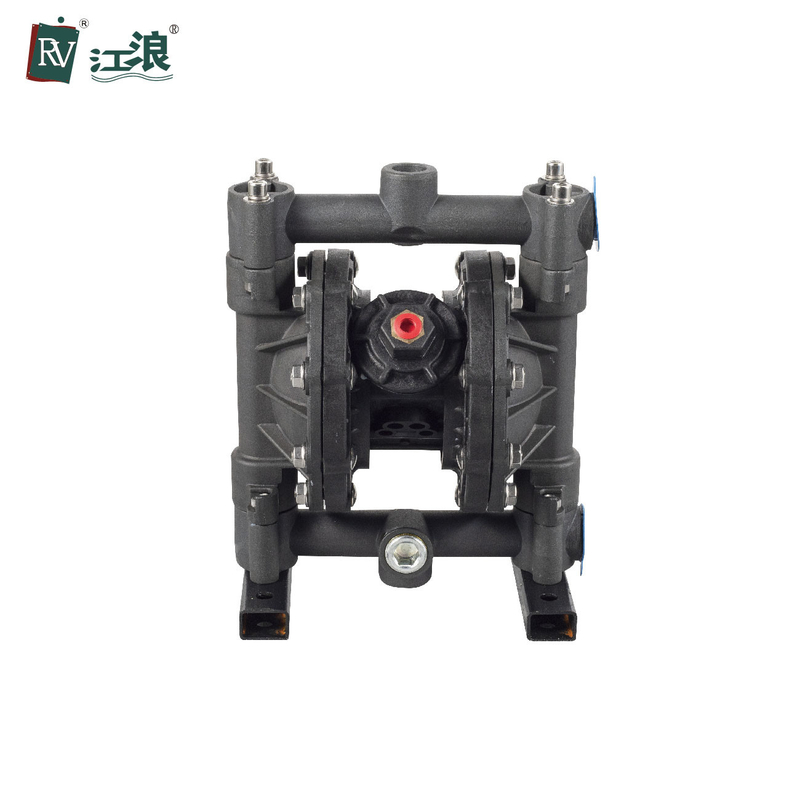

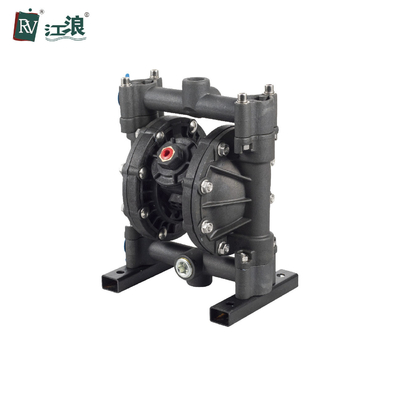

1/2 Air Operated Double Diaphragm Pump 100 Psi 15 Gpm Aluminum Alloy

1/2 Air Operated Double Diaphragm Pump 100 Psi 15 Gpm Aluminum Alloy
1/2 Air Operated Double Diaphragm Pump 100 Psi 15 Gpm Aluminum Alloy 1/2 Air Operated Double Diaphragm Pump 100 Psi 15 Gpm Aluminum Alloy

Large Image :  1/2 Air Operated Double Diaphragm Pump 100 Psi 15 Gpm Aluminum Alloy

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-53311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

1/2 Air Operated Double Diaphragm Pump 100 Psi 15 Gpm Aluminum Alloy

Description
Product Name: Air Diaphragm Pump Fuel: Air Driven
Brand Name: RV Model Number: RVP-53311-T
Lift: 230 FT / 70meter Application: Dinking Water Treatment, Raw Water Intake
Material Of Diaphragm: PTFE Santoprene Weight: 4.6kg
High Light:

1/2 double diaphragm pump

,

1/2 air operated double diaphragm pump 100 psi 15 gpm

,

15 gpm diaphragm pump

1/2 Air Operated Double Diaphragm Pump 100 Psi 15 Gpm Aluminum Alloy



Air Diaphragm Pump Advantages:

  • Idling ,Self-priming , Submerse capability.
  • Provide stall-free, ice-free zero leak operation.
  • Epoxy-coated air section for tough environmental conditions.
  • Low shear force , not easy to damage the material structure.
  • Bolt joint design provides even sealing pressure for optimal performance
  • Modular air valve,low pulsation operation,providing smooth and rapid changeover.
  • No electricity . It's safe and realiable while using in the flammable and explor place .
  • Diversity of material,no rotating parts,applicable to various erosive situations.
  • Can pump corrosive , volatile, flammable, poisonous fluids with particles and high viscosity.
  • Delivery lift and flow can pass the pneumatic valve open to realize the stepless adjustment.



Air Diaphragm Pump Packing Status:
- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free



Max Discharge Pressure 100 psi(0.7Mpa, 7bar)
Max Capacity 15 gpm(57lpm)
Max Reciprocating Speed 400 cpm
Power Pnuematic
Max Permitted Grain 3/32 in(2.5mm)
Advantages: Explosion-proof
Air Inlet Size 1/4 in.npt(f)
Air Outlet Size 3/8 in.npt(f)
Fluid Inlet Size 3/4 in.
Fluid Outlet Size 3/4 in.
Net Weight 4.8kg






1/2 Air Operated Double Diaphragm Pump 100 Psi 15 Gpm Aluminum Alloy 0




Air Diaphragm Pump Application



The air diaphragm pumps use compressed air as power source, and it is the most advanced type of diaphragm pumps in market for the moment. It adopts three-way air pilot valve to achieve real no dead stop and faster reversing. It is widely applied in waste water treatment, chemical industry, petrochemical industry, painting, ceramics, environmental protection, printing and dyeing, etc. to deal with all kinds of corrosive, volatile, flammable, poisonous fluids with particles and high viscosity.





spraying and cleaning

Air Diaphragm pumps are perfect for spraying paint, cleaning roofs and spraying conveyers/bottles for anti-static. These air diaphragm pump are suited for these types of applications due to their durability and the volume produced by each pump. The air diaphragm pump, combined with the power of an air compressor, allows cleaning chemicals, paints and other fluids to be dispensed at a constant rate.




FAQ

1. Q: Are you a factory or trading company?

A: We are a factory.



2. Q: What're your payments ?

A: T/T,Western Union,L/C etc.



3. Q: What about the package ?

A: Standard export plywood case or carton.



4. Q: How long is the warranty ?

A: According to international standards, products in standard operation is 1 year,except wearable parts.



5. Q: The use of air diaphragm pump have?

A: air diaphragm pump can suck the peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.

Air diaphragm pump can suck the paint, pigment, glue and adhesive etc.

Air diaphragm pump can suck various glazed slurries of tile, porcelain, brick and chinaware etc.

Air diaphragm pump can suck various toxin and flammable or volatility liquid etc.

Air diaphragm pump can suck various strong acid, alkali and corrosive liquid etc.



6. Q: How air diaphragm pump quality and service?

A: Our air diaphragm pump have CE certificate, quality assured, can accept OEM, provide various personalized needs.
