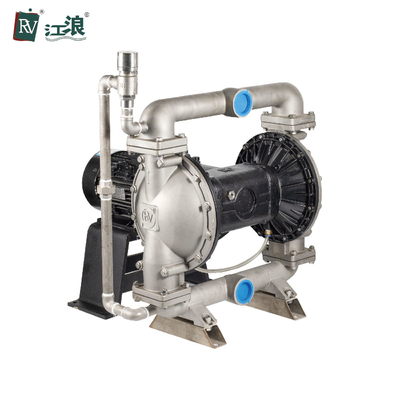

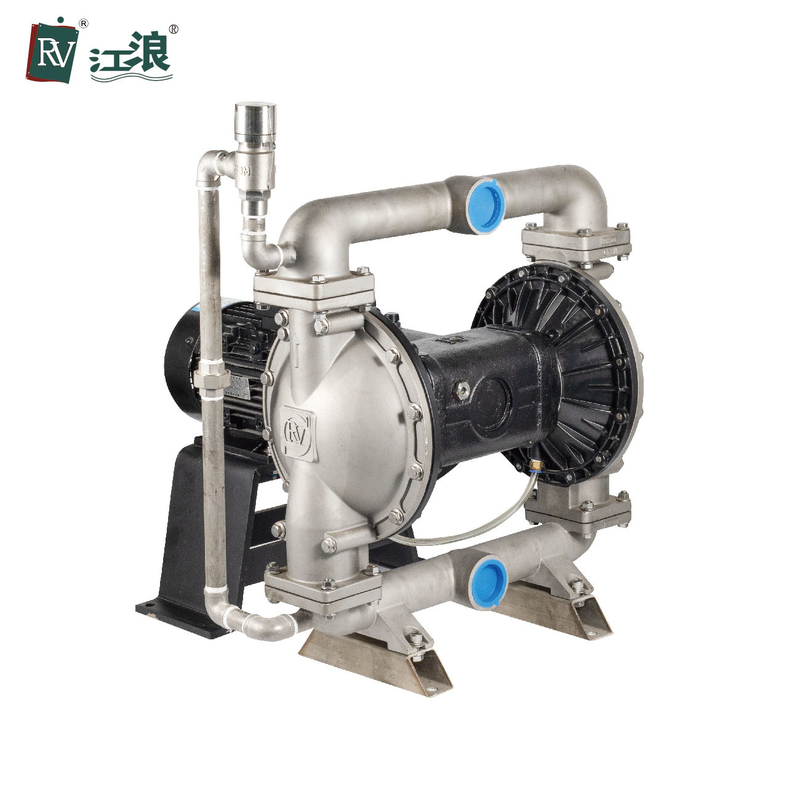

Diaphragm Electric Operated Positive Displacement Pump Aod Pump 2 inch

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

Diaphragm Electric Operated Positive Displacement Pump Aod Pump 2 inch

Diaphragm Electric Operated Positive Displacement Pump Aod Pump 2 inch
Diaphragm Electric Operated Positive Displacement Pump Aod Pump 2 inch

Large Image :  Diaphragm Electric Operated Positive Displacement Pump Aod Pump 2 inch

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVE-F4311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Diaphragm Electric Operated Positive Displacement Pump Aod Pump 2 inch

Description
Materal: Aluminum Brand: RV
Color: Silver Flow Rate: 10.5 M³/h
Motor Standard: Explosion Proof & Frequency Conversion Carton Size: 52*35*65cm
Size: 2 Inch Model: RVE-F4311-T
Certification: CE ATEX ISO9001 Power: Electric
High Light:

Diaphragm Electric Operated Positive Displacement Pump

,

Electric Operated Positive Displacement Pump 2

,

Aod Pump 2 Inch

RVE50 Hot Selling Aluminum Electric Diaphragm Pump in chemical applications



WHAT IS AN ELECTRIC DIAPHRAGM PUMP?

An electric diaphragm pump is a mechanically driven pump and its types are manufactured with design capability to run with a single or double diaphragm configurations depending on the application.

Electric diaphragm pumps is introduced to reduce costs by eliminating unnecessary pump failures and improving your facilities energy efficiency. The EODD gives you an excellent and superb output with a motor drive as opposed to the more costly traditional air-operated diaphragm pump.





Diaphragm Pump Technical Specification :



Model RVE-F4311-T
Max Flow Rate 10.5m³/h
Max Reciprocating Speed 145 cpm
Max Suction lift 3m
Max head lift 30m
Max Pressure 3kg
Motor Speed 1420
Motor Capacity 3KW
Temperature (Mental) 90
Temperature (plastic) 80
Weight AL pump 130kgs





Electric Diaphragm Pump Advantages:


- Long service life

- Stable operation

- Perfect sealing design

- Diaphragms and all sealing parts imported from USA

- Easy maintenance

- Lube free






Diaphragm Electric Operated Positive Displacement Pump Aod Pump 2 inch 0

























































Company Introduction:



Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.



Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years

We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.

The mainly products are diaphragm pumps and control valves, including: Pneumatic Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.





Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.

Diaphragm material: PTFE, Santoprene, , Hytrel, Buna-N, etc.

Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"

Connection type:
-Threaded connection: Plastic pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic pumps from 1/2" to 3".

Diaphragm Electric Operated Positive Displacement Pump Aod Pump 2 inch 1


Diaphragm Electric Operated Positive Displacement Pump Aod Pump 2 inch 2



Our service


* All of the enquiry will be replied within 24 working hours

* Professional pump producer, with design team.

* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service





FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity. Generally Speaking ,1-7 working days.
4. Q: What about package?

A: Cartons with foam inside & wooden case & Pallet.
5. Q: How are the products delivered to us?
A: By International express or by sea.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
