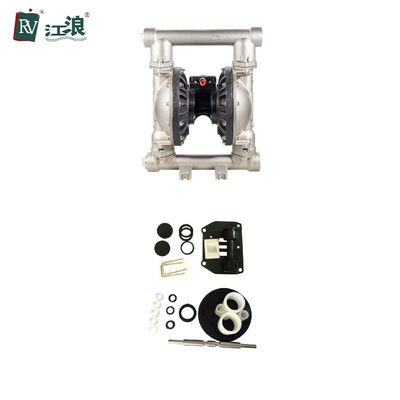

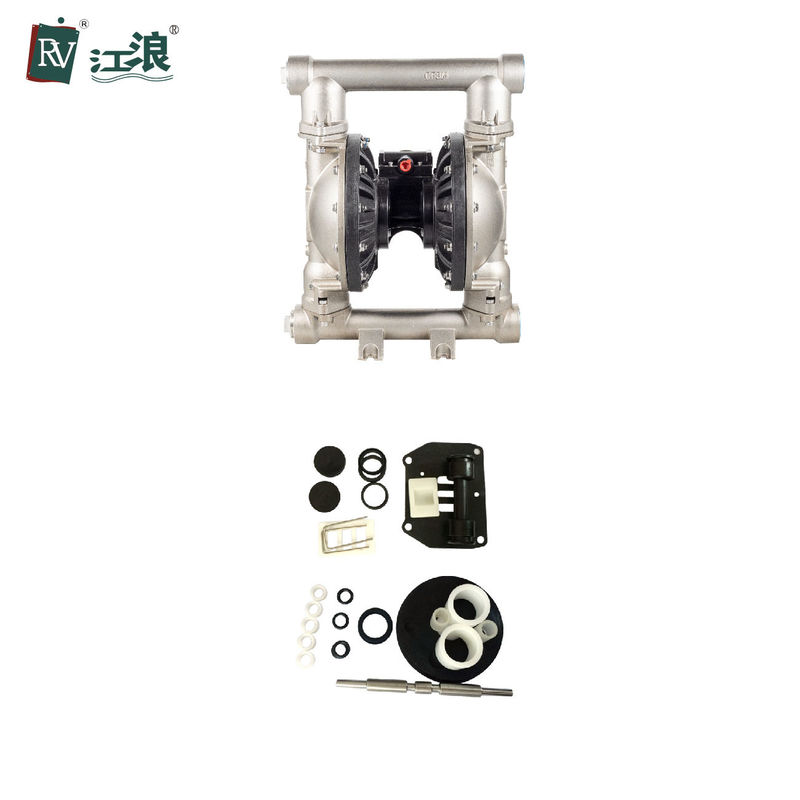

RV25 Diaphragm Pump (Full Stainless Steel)

RV25 Diaphragm Pump (Full Stainless Steel)
RV25 Diaphragm Pump (Full Stainless Steel)

Large Image :  RV25 Diaphragm Pump (Full Stainless Steel)

Product Details:
Contact Now

RV25 Diaphragm Pump (Full Stainless Steel)

Description
Max Working Pressure: 100psi(0.7Mpa ,7bar) Max Flow Rate: 40 Gpm(150 Lpm)
Max Reciprocating Speed: 276cpm Max.Suction Height (Dry Sucking): 5m
Max Permitted Grain: 4mm Aax Air Consumption: 60scfm(1.7m³/min)
Air Inlet Size: 1/2 In.npt(f) Air Outlet Size: 1/2 In.npt(f)
Fluid Inlet Size: 1 In.npt Fluid Outlet Size: 1 In.npt(f)
Weight: Aluminum Pump 8.2kg
Stainless Steel Pump 15kg
Highlight:

stainless steel diaphragm pump

,

RV25 diaphragm pump with warranty

,

full stainless steel RV25 pump

Product Page

High-Flow Diaphragm Pump

Engineered for demanding industrial applications, this diaphragm pump offers exceptional flow rates in a compact and portable design. With robust construction and versatile material options, it's ideal for transferring a wide range of fluids, from food products to industrial chemicals.

  • High flow rate (40 gpm)
  • Durable construction for corrosive environments
  • Versatile fluid handling capabilities
  • Compact and portable design
  • Optional remote operation
Target Industries & Applications: Food processing, chemical transfer, liquid concentrate handling, and more.
RV25 Diaphragm Pump (Full Stainless Steel) 0 RV25 Diaphragm Pump (Full Stainless Steel) 0 RV25 Diaphragm Pump (Full Stainless Steel) 0 RV25 Diaphragm Pump (Full Stainless Steel) 0

Product Details

Unit
Piece
MOQ
0
FOB Price
$0.00
Packaging & Delivery
N/A

Technical Specifications

Parameter Value
Max Working Pressure 100psi (0.7Mpa, 7bar)
Max Flow Rate 40 gpm (150 lpm)
Max Reciprocating Speed 276 cpm
Max. Suction Height (Dry Sucking) 5m
Max Permitted Grain 4mm
Aax Air Consumption 60 scfm (1.7 m³/min)
Air Inlet Size 1/2 in. npt(f)
Air Outlet Size 1/2 in. npt(f)
Fluid Inlet Size 1 in. npt
Fluid Outlet Size 1 in. npt(f)
Weight Aluminum pump: 8.2kg
Stainless steel pump: 15kg

Tag:

diaphragm pump 3 inch,

stainless steel diaphragm pump air operated 270 gpm,

3 inch stainless steel diaphragm pump air
