Product Details:
|
Materal: | PP | Brand: | RV |
---|---|---|---|
Max Solid Passage: | 2 - 5mm | Weight (kg): | 300 |
Max. Flow Rate: | 16 Cubic Meter Per Hour | Max. Head: | 60 Meter |
Size: | 3 Inch | Power: | 5.5 Kw Explosive Motor |
Valve Seat: | SS304 | ||
Highlight: | double motor operated diaphragm pump Fuel,motor operated double diaphragm pump,engine driven diaphragm pump |

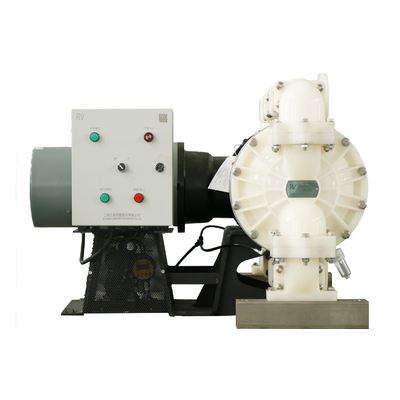

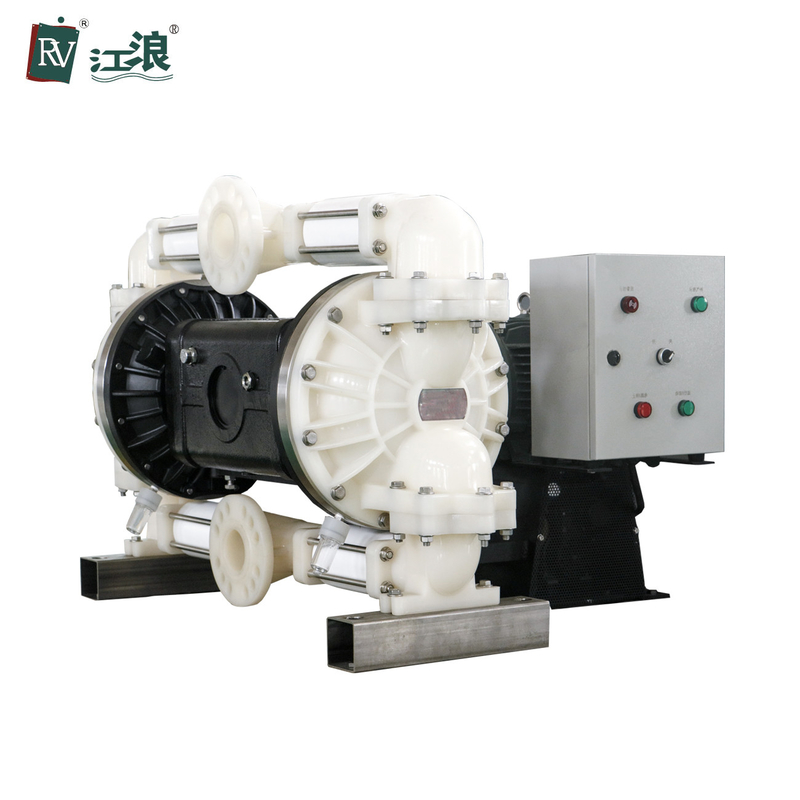

3 inch PP High Quality Manufacturers Fuel Material Motor Diaphragm Pump
ELECTRIC MOTOR DIAPHRAGM PUMPS
The electric motor diaphragm pump also offers the extreme versatility of opertaing in duplex mode with two pumps working at the same time—something that an air operated double diaphragm pump cannot do. Since an electric motor diaphragm pump operates by working in a 90 degree out-of-phase design, you can use two pumps in tandem at the same time and not only the traditional lead/lag traditional fashion. This means that you only use one motor, one gearbox, one baseplate, and one manifold piping system system—further saving on material, time, money, and even weight as compared to two independent pump systems.
.
Technical Specification:
Max Outlet Pressure | 0.6Mpa , 6bar |
Max Flow Rate | 16 m³/h |
Max Suction Lift | 3m |
Motor Power | 5.5 KW in standard (Senior 7.5 KW as options
)
|
Motor Speed | 1450r/min |
Fluid Inlet Size | 3 inch Flange |
Exterior dimension drawing
Motor Diaphragm Pump Features:
High efficiency electro-mechanical drive and slow stroke rates keep energy bills low and wear parts cost to a minimum. Mechanical simplicity makes seldom needed maintenance a breeze, unlike progressive cavity pumps, gear, rotary lobe, or peristaltic type pumps. A design that offers a robust construction with integral metal core ball check valves and fabric-reinforced diaphragms that offer a smooth mechanically controlled linear drive would prove the most desirable
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time?
A: Depend on the quantity.
4. Q: What about package?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
