Product Details:
|
| Product Name: | Air Operated Diaphragm Pump | Inlet/ Outlet: | 2 " |
|---|---|---|---|
| Type: | Industrial Pump | Power Source: | Pneumatic |
| Applicant: | Drinking Water Treatment, Raw Water Intake, Washing And Cleaning, | Standard Or Non: | Standard |
| Elastomer: | PTFE | Center Block: | Stainless Steel 304 |
| High Light: | AODD Pneumatic Diaphragm Pump,Pneumatic Diaphragm Pump Plastic 2In,2In sulphuric acid diaphragm pump |
||

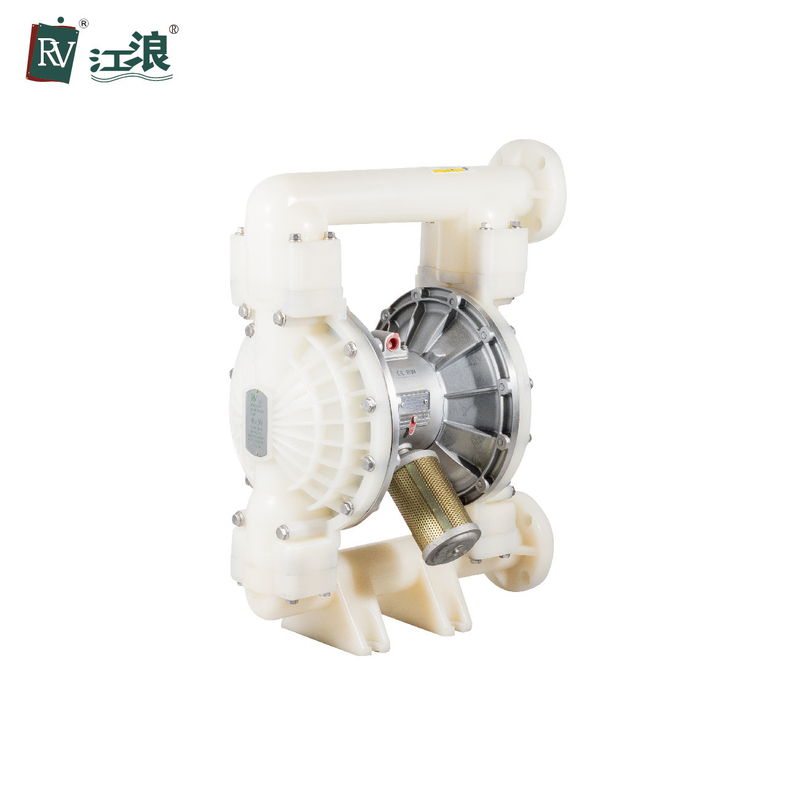

2 Inch Plastic Air Operated Diaphragm Pump For Sulphuric Acid Transfer
Jianglang Technology has been manufacturing a variety of specialty air operated diaphragm pumps for supplying and circulating chemicals in the semiconductor industry. The stainles steel center section is suited for the special requirements of these applications.
RV air operated diaphragm pumps are self-priming and dry run capable, and feature a compact, simple design with few parts. RV air operated diaphragm pumps have housing parts machined from solid blocks for long-life performance, and are cleaned, assembled and tested in a cleanroom line. For every pump size and material option, the appropriate pulsation damper is available.
| Max Working Pressure | 120 psi ( 0.8Mpa, 8.4bar) |
| Max Flow Rate | 150 gpm ( 570 lpm) |
| Max Reciprocating Speed | 145 cpm |
| Max Suction Height (Dry Sucking) | 5m |
| Max Permitted Grain | 0.24 in ( 6mm) |
| Max Air Consumption | 140 scfm ( 70 L/s ) |
| Air Inlet Size | 1/2 in.npt(f) |
| Air Outlet Size | 3/4 in.npt(f) |
| Fluid Inlet Size | 2 in. |
| Fluid Outlet Size | 2 in. |
| Center Block | Stainless Steel 304 |
Pump Casing Materials
Company Introduction:
Jianglang mainly provides services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and Pharmaceutical industry.
Jianglang has established long term business relationship with famous enterprise. Its RV air operated diaphragm pump has been exported to more than 70 countries and regions.
We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.
FAQ
1. Q: What is MOQ for air operated diaphragm pump?
A: 1pc for regular air operated diaphragm pump. Samples are available and sample cost can be deducted from future orders.
2. Q: What's the payment for air operated diaphragm pump?
A: D/P, T/T, Western Union , please confirm with us with exact order.
3. Q: What is the delivery time for air operated diaphragm pump?
A: Depend on the quantity.
4. Q: What about package for air operated diaphragm pump?
A: Cartons with foam inside & wooden case.
5. Q: How are the products delivered to us?
A: By International express.
6. Q: How long is the warranty for air operated diaphragm pump?
A: 1 year warranty. (except wearing parts)
7. Q: Whether the air diaphragm pump can be made of different standard?
A: Of course yes. We could air diaphragm pump according to custom need.
