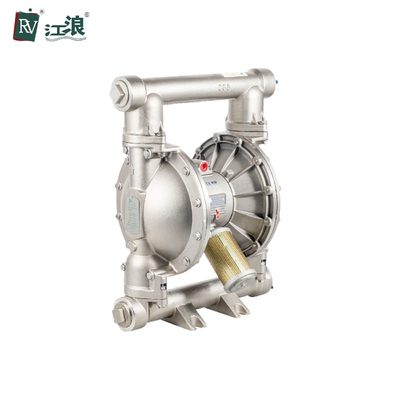

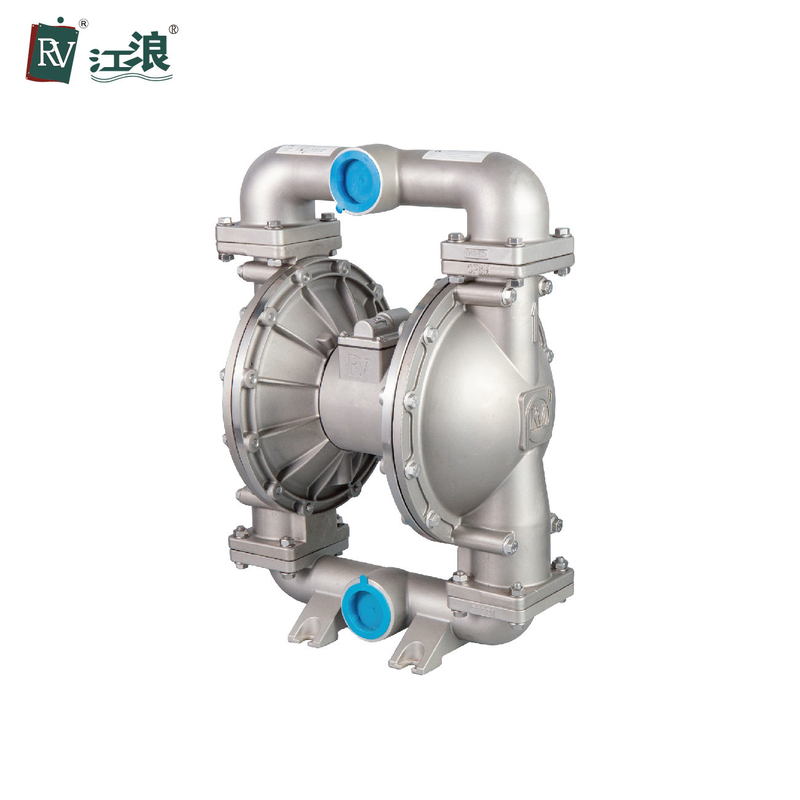

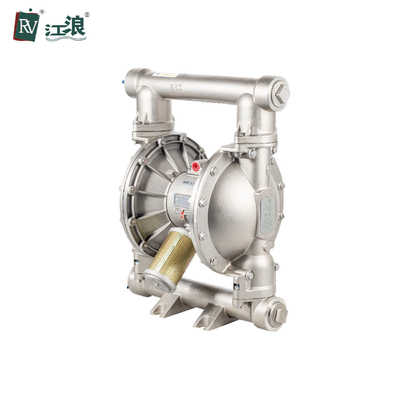

Small Submersible Diaphragm Pump 2 Inch Dual Diaphragm Air Pump 150gpm

Small Submersible Diaphragm Pump 2 Inch Dual Diaphragm Air Pump 150gpm
Small Submersible Diaphragm Pump 2 Inch Dual Diaphragm Air Pump 150gpm Small Submersible Diaphragm Pump 2 Inch Dual Diaphragm Air Pump 150gpm Small Submersible Diaphragm Pump 2 Inch Dual Diaphragm Air Pump 150gpm

Large Image :  Small Submersible Diaphragm Pump 2 Inch Dual Diaphragm Air Pump 150gpm

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVS-F4311-T(C)
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Small Submersible Diaphragm Pump 2 Inch Dual Diaphragm Air Pump 150gpm

Description
Materal: Stainless Steel Brand: RV
Color: Silver Flow Rate: 568L/M
Noise Level: < 70 Db Hight Light: Stainless Steel Air Operated Diaphragm Pump
Size: 2 Inch Model: RVS-F4311-T (C)
Certification: CE ATEX ISO9001 Fluid Port: Middle Port
High Light:

RV Small Submersible Diaphragm Pump 2 Inch

,

RV 2 Inch Dual Diaphragm Air Pump 150gpm

,

RV dual diaphragm pump

Dual Industrial Air Operated Diaphragm Pump 2 inch Submersible Pump



Air Operated Diaphragm Pump Advantages:



It is one of the good air operated diaphragm pumps that has been used extensively worldwide. It's suitable for pumping chemical liquids, food sauce, industrial sludge, and any liquids with solid particles or impurity.

Our air operated diaphragm pumps are self-made products with reliable air valve design. In normal working condition, it can ensure no-stall quality. We provide one year warranty period.



Features

• 2 in (50.8 mm) NPT / BSP mifflr-porting

• Larger ports for more flow — up to 150 gpm (568 lpm)

• Fluid pressure up to 120 psi (8.4 bar, 0.84 MPa)

• high-reliability closed center air valve is online serviceable

• Lube-free operation

• Epoxy-coated air section

• External controller for optional remote operation

• Stainless steel center section for corrosive applications


Max Working Pressure 120 psi(0.84Mpa, 8.4bar)
Max Flow Rate 150 gpm(568 lpm)
Max Reciprocating Speed 145 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 6.3mm
Max Air Consumption 140 scfm(70L/s)
Air Inlet Size 1/2 in.npt(f)
Air Outlet Size 1/2 in.npt(f)
Fluid Inlet Size 2 in.npt(f)
Fluid Outlet Size 2 in.npt(f)
Weight AL pump 29kg; SST pump 47kg

Small Submersible Diaphragm Pump 2 Inch Dual Diaphragm Air Pump 150gpm 0




Packing & Shipping:

Small Submersible Diaphragm Pump 2 Inch Dual Diaphragm Air Pump 150gpm 1Small Submersible Diaphragm Pump 2 Inch Dual Diaphragm Air Pump 150gpm 2


Company Introduction:



Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.

Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years

We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.

The mainly products are air operated diaphragm pumps and control valves, including: Air Operated Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Pneumatic Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.



Small Submersible Diaphragm Pump 2 Inch Dual Diaphragm Air Pump 150gpm 3Small Submersible Diaphragm Pump 2 Inch Dual Diaphragm Air Pump 150gpm 4

FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time?
A: Depend on the quantity.

4. Q: What about package?
A: Cartons with foam inside & wooden case.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
