Santoprene Membrane Diaphragm Pump Transfer Water Plastic 1 Inch

China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

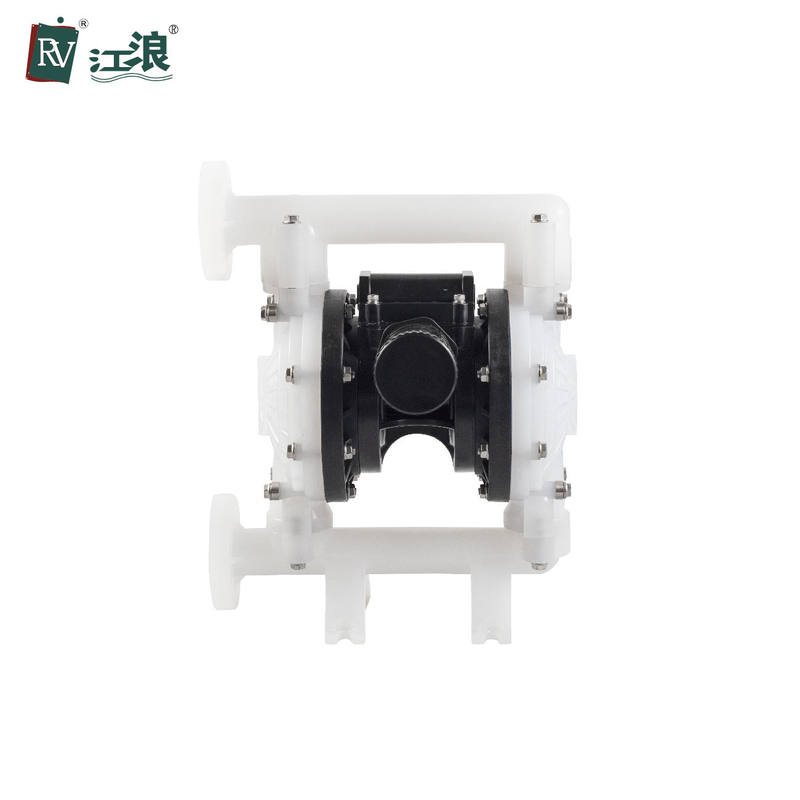

Santoprene Membrane Diaphragm Pump Transfer Water Plastic 1 Inch

Santoprene Membrane Diaphragm Pump Transfer Water Plastic 1 Inch
Santoprene Membrane Diaphragm Pump Transfer Water Plastic 1 Inch

Large Image :  Santoprene Membrane Diaphragm Pump Transfer Water Plastic 1 Inch

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVP-72A66-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

Santoprene Membrane Diaphragm Pump Transfer Water Plastic 1 Inch

Product Name: Air Diaphragm Pump Inlet/ Outlet: 1 "
Type: Circulating Pump Max. Head: 70 M
Usage: Chemicl Coating Water Treament Certificateion: ISO 9001 , CE , ATex
Elastomer: Santoprene Center Block: Polypropylene
High Light:

Santoprene Membrane Diaphragm Pump


Membrane Diaphragm Pump Transfer 1 Inch


1 inch diaphragm pump

1 Inch Plastic Air Operated Diaphragm Pump With Santoprene Membrane For Water Transfer Industry



Air operated diaphragm pumps have good suction lift characteristics, are self-priming in most fluids, and can run dry. These air operated diaphragm pump can handle low to medium viscosity fluids with ease (including those containing large suspended solids) and may be used to pump both corrosive and flammable liquids. There’s a saying in the processing industries that if a material can be poured into an air operated diaphragm pump, these types of air operated diaphragm pumps can generally pump it.

Due to their simple design, air operated diaphragm pumps are relatively inexpensive to both purchase and operate, and coupled with their efficiency and accuracy, stainless steel versions are well suited for certain food grade sanitary processing applications, including filling, dispensing, and metering fluids as well as water removal.

Common uses in the food & beverage processing and biopharmaceutical manufacturing industries include:

  • Additive injection
  • Sampling
  • Dosing
  • Coating
  • Raw material unloading
  • Filling
  • Shear-sensitive processes
  • Filter presses
  • Aseptic transfer of proteins and cells
  • Producing the required flow



Max Working Pressure 120 psi(0.8Mpa, 8.4bar)
Max Flow Rate 40 gpm(151lpm)
Max Reciprocating Speed 276 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.16 in(4mm)
Max Air Consumption 45scfm(22.5L/s)
Air Inlet Size 1/2 in.npt(f)
Air Outlet Size 3/4 in.npt(f)
Fluid Inlet Size 1 in.
Fluid Outlet Size 1 in.
Net Weight PP pump 10kg




Santoprene Membrane Diaphragm Pump Transfer Water Plastic 1 Inch 0

Packing & Shipping:

Our service

* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service

Company Introduction:


Jianglang mainly provides services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and Pharmaceutical industry.

Jianglang has established long term business relationship with famous enterprise. Its RV pneumatic diaphragm pump has been exported to more than 70 countries and regions.

We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.



Q1. Can I have a sample order for air operated diaphragm pump?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2. What about the lead time?

A: 3-5 days for Sample preparing ,8-10 working days for mass production.


Q3. Do you have any MOQ limit for air diaphragm order?

A: Low MOQ, 1pc for sample checking is available.


Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.


Q5. How to proceed an order for air diaphragm pump?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.


Q6: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to our air operated diaphragm pump.
