Home ProductsStainless Steel Diaphragm Pump

hydrochloric acid Stainless Steel Diaphragm Pump Transfer Water Oil Lotion 2"

Certification
China Jianglang Technology  Co. Ltd. certification
China Jianglang Technology  Co. Ltd. certification
I'm Online Chat Now

hydrochloric acid Stainless Steel Diaphragm Pump Transfer Water Oil Lotion 2"

hydrochloric acid Stainless Steel Diaphragm Pump Transfer Water Oil Lotion 2"
hydrochloric acid Stainless Steel Diaphragm Pump Transfer Water Oil Lotion 2" hydrochloric acid Stainless Steel Diaphragm Pump Transfer Water Oil Lotion 2" hydrochloric acid Stainless Steel Diaphragm Pump Transfer Water Oil Lotion 2" hydrochloric acid Stainless Steel Diaphragm Pump Transfer Water Oil Lotion 2"

Large Image :  hydrochloric acid Stainless Steel Diaphragm Pump Transfer Water Oil Lotion 2"

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-F4311-T
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

hydrochloric acid Stainless Steel Diaphragm Pump Transfer Water Oil Lotion 2"

Description
Materal: Stainless Steel Brand: RV
Color: Black Flow Rate: 568L/M
Weight: 50kgs Carton Size: 52cm×35cm×65cm
Size: 2 Inch Model: RVA-F4311-T
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
High Light:

RV hydrochloric acid diaphragm pump

,

RV hydrochloric acid Stainless Steel Diaphragm Pump

,

RV 2" diaphragm pump for hydrochloric acid

hydrochloric acid Stainless Steel Diaphragm Pump Transfer Water Oil Lotion 2"

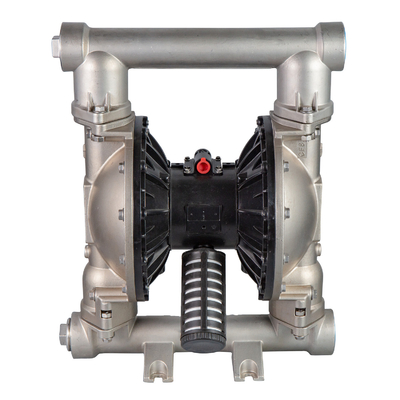

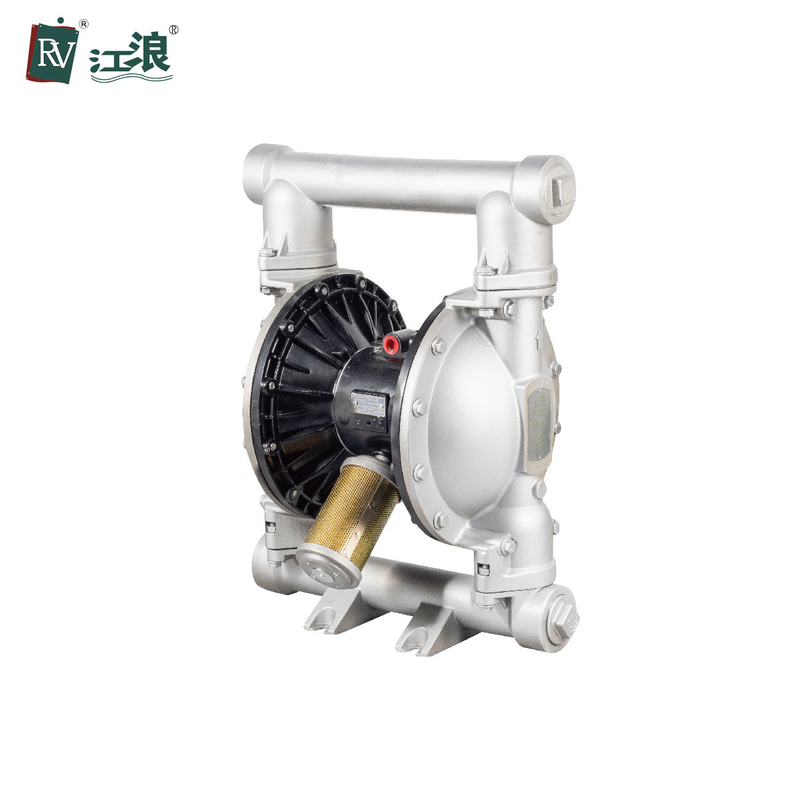

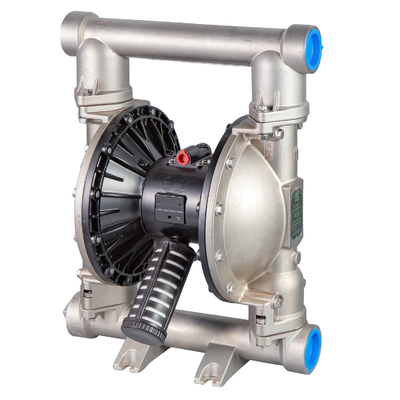

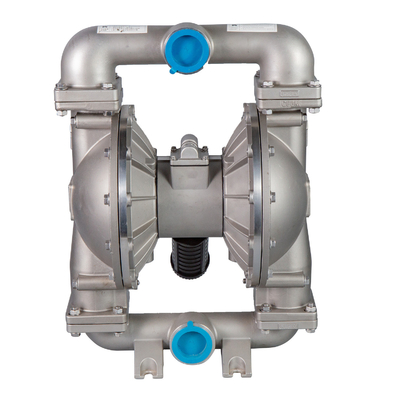

Stainless Steel Diaphragm Pump
Stainless steel diaphragm pump is one of the most efficient and highest-flowing pumps in the industry. It utilizes a strong design for easy assembly and disassembly and is ATEX compliant. This robust design is perfect for general industry applications where flow, efficiency and routine maintenance are required, including oil & gas, dewatering, paint & coatings, ceramics and mining.


Max Working Pressure 120 psi(0.84Mpa, 8.4bar)
Max Flow Rate 150 gpm(568 lpm)
Max Reciprocating Speed 145 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 6.3mm
Max Air Consumption 140 scfm(70L/s)
Air Inlet Size 1/2 in.npt(f)
Air Outlet Size 1/2 in.npt(f)
Fluid Inlet Size 2 in.npt(f)
Fluid Outlet Size 2 in.npt(f)
Weight AL pump 29kg; SST pump 47kg





Diaphragm Pump HS CODE : 8413501090
Diaphragm Pump Packing Status:
- Air order: Water-proof carton box
- Sea order: Wooden cases, fumigation free

hydrochloric acid Stainless Steel Diaphragm Pump Transfer Water Oil Lotion 2" 0hydrochloric acid Stainless Steel Diaphragm Pump Transfer Water Oil Lotion 2" 1
hydrochloric acid Stainless Steel Diaphragm Pump Transfer Water Oil Lotion 2" 2hydrochloric acid Stainless Steel Diaphragm Pump Transfer Water Oil Lotion 2" 3

Packing & Shipping:
Our service
* All of the enquiry will be replied within 24 working hours
* Professional pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service

Company Introduction:

Jianglang mainly provides services and solutions for chemical industry, painting & coating industry, water treatment industry, petroleum industry, environmental protection industry and food and Pharmaceutical industry.
Jianglang has established long term business relationship with famous enterprises. Its RV pneumatic diaphragm pump has been exported to more than 70 countries and regions.

We have the following materials available, and our engineers will select the most suitable and economical material for you according to your specific working conditions.

Wetted parts material: PP, PVDF, Acetal, Aluminum alloy, Ductile iron, stainless steel, etc.

Diaphragm material: PTFE, Santoprene, , Hytrel, Buna-N, etc.

Available inlet/outlet size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/2", 2", 3"

Connection type:
-Threaded connection: Plastic pumps from 1/4" to 1-1/2", and all metal pumps.
-Fanged connection: Plastic pumps from 1/2" to 3".

hydrochloric acid Stainless Steel Diaphragm Pump Transfer Water Oil Lotion 2" 4hydrochloric acid Stainless Steel Diaphragm Pump Transfer Water Oil Lotion 2" 5
FAQ
1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.


2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.


3. Q: What is the delivery time?
A: Depend on the quantity.


4. Q: What about package?
A: Cartons with foam inside & wooden case.


5. Q: How are the products delivered to us?
A: By International express.


6. Q: How long is the warranty?
A: 1 year warranty. (except wearing parts)


7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
