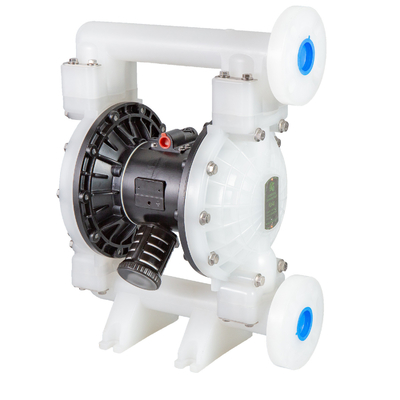

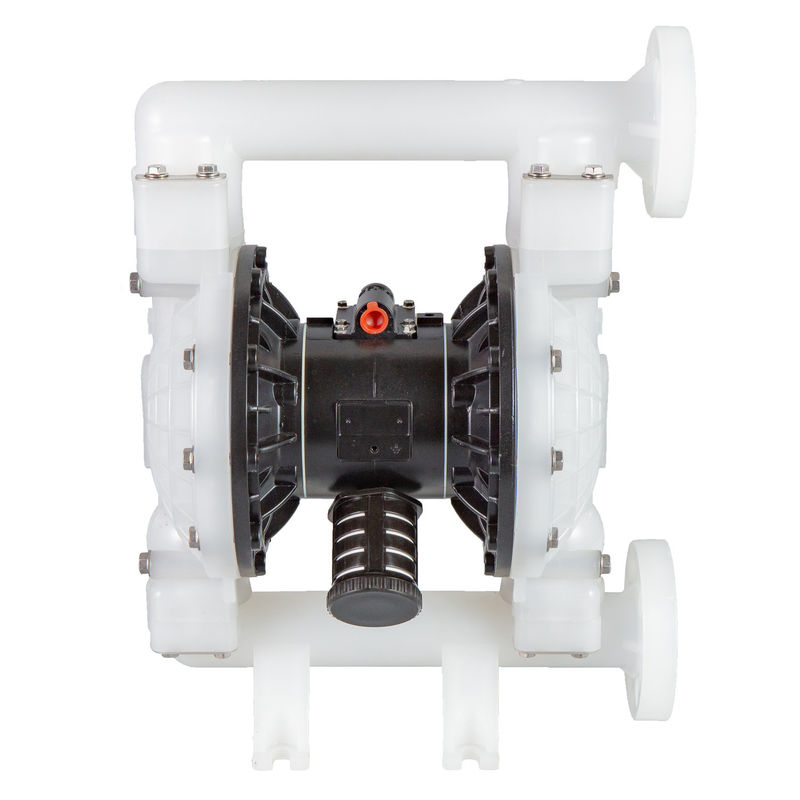

1.5 Inch PP Polypropylene Diaphragm Pump Air Driven 90gpm Portable Fluid Handling

1.5 Inch PP Polypropylene Diaphragm Pump Air Driven 90gpm Portable Fluid Handling
1.5 Inch PP Polypropylene Diaphragm Pump Air Driven 90gpm Portable Fluid Handling 1.5 Inch PP Polypropylene Diaphragm Pump Air Driven 90gpm Portable Fluid Handling 1.5 Inch PP Polypropylene Diaphragm Pump Air Driven 90gpm Portable Fluid Handling

Large Image :  1.5 Inch PP Polypropylene Diaphragm Pump Air Driven 90gpm Portable Fluid Handling

Product Details:
Place of Origin: China
Brand Name: RV
Certification: CE , ATEX ,ISO9001
Model Number: RVA-B2A11-F
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiate
Packaging Details: Carton / Woodencase/ Pallet
Delivery Time: 1-7working day
Payment Terms: L/C, T/T, Western Union, D/A, D/P, Paypal
Supply Ability: 10000 SET Month

1.5 Inch PP Polypropylene Diaphragm Pump Air Driven 90gpm Portable Fluid Handling

Description
Materal: PP Brand: RV
Color: White Flow Rate: 340L/M
Weight: 15.6kgs Carton Size: 49*28*66cm
Size: 1 1/2 Inch Model: RVA-B2A11-F
Certification: CE ATEX ISO9001 Feature: Eco-Friendly
High Light:

1.5 inch PP polypropylene diaphragm pump

,

polypropylene diaphragm pump air driven 118gpm

,

1.5 diaphragm pump

1.5 inch PP polypropylene diaphragm pump air driven 90gpm portable fluid handling



Air Diaphragm Pump Advantages:


- Never deadstop (three-way pilot type air-distributing valve)
- Stable operation
- Perfect sealing design
- Diaphragms and all sealing parts high quaity
- Easy maintenance
- Lube free

Air Diaphragm Pump Information:


- Name: Air Diaphragm Pump
- Model Type: RVA-B2A11-F
- Wetted Parts: Polypropylene
- Seat: Polypropylene
- Ball: PTFE
- Diaphragm: PTFE
- Back-up: Santoprene

-Connection: Flange or threaded





Max Working Pressure 120 psi(0.84Mpa, 8.4bar)
Max Flow Rate 90 gpm(340lpm)
Max Reciprocating Speed 200 cpm
Max Suction Height (Dry Sucking) 5m
Max Permitted Grain 0.2 in(5mm)
Max Air Consumption 80scfm(70L/s)
Air Inlet Size 1/2 in.npt(f)
Air Outlet Size 3/4 in.npt(f)
Fluid Inlet Size 1 1/2 in.
Fluid Outlet Size 1 1/2 in.
Net Weight PP pump 16kg; PVDF pump20kg



1.5 Inch PP Polypropylene Diaphragm Pump Air Driven 90gpm Portable Fluid Handling 01.5 Inch PP Polypropylene Diaphragm Pump Air Driven 90gpm Portable Fluid Handling 1


Packing & Shipping:

1.5 Inch PP Polypropylene Diaphragm Pump Air Driven 90gpm Portable Fluid Handling 21.5 Inch PP Polypropylene Diaphragm Pump Air Driven 90gpm Portable Fluid Handling 3
Our service


* All of the enquiry will be replied within 24 working hours
* Professional air diaphragm pump producer, with design team.
* All of the goods are packed with standard export wooden case (non-fumigation)
* Fast after-service

Company Introduction:



Jiangliang Technology Co.,Ltd is headquartered in Shanyang Town, Jinshan District of Shanghai, with 2 production bases and 3 branches in the mainland of China.

Jianglang has been awarded as High-Tech Enterprise and Credit Company title in consecutive years

We have strong capability of design, innovation, precision production and tight cooperation with Shanghai universities.

The mainly products are air diaphragm pump and control valves, including: Air Diaphragm Pump, Electric Diaphragm Pump, Piston Pump, Powder Pump, Sanitary Pump, Diaphragm Pump with Leakage Detector Controller, Air Diaphragm Regulating Valve, Control Valve, Sequencing Valve and so on products.

The air diaphragm pump and valves have been granted more than 40 patents, including 10 invention patents. Jianglang participated in setting norms and standards for technical specification for pneumatic diaphragm pumps in petrochemical industry, according to the national standard No.: SH/T 3191-2017. Besides, Jianglang obtains necessary certificates such as TS.A National Manufacturing License, CE, ATex, ISO9001, SGS and so on certificates.







FAQ


1. Q: What is MOQ?
A: 1pc for regular product. Samples are available and sample cost can be deducted from future orders.

2. Q: What's the payment?
A: D/P, T/T, Western Union , please confirm with us with exact order.

3. Q: What is the delivery time for air diaphragm pump?
A: Depend on the quantity.

4. Q: What about package for air diaphragm pump?
A: Cartons with foam inside & wooden case.

5. Q: How are the products delivered to us?
A: By International express.

6. Q: How long is the warranty for air diaphragm pump?
A: 1 year warranty. (except wearing parts)

7. Q: Whether the products can be made of different standard?
A: Of course yes. We could produce product according to custom need.
